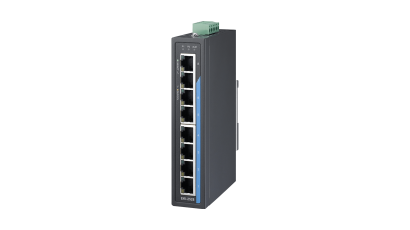

EKI-2528-BU 8FE非管理型乙太網交換器

詳細規格

Power

• Power Consumption 4.71W
• Power Input (DC) 12 ~ 48 VDC
• Power Connector Type 6-pin removable screw terminal
• Power Input (AC) -
• Power Input (PoE) -
• Power Input (Battery) -
• Redundant Dual Inputs Yes

Protection

• Reverse Polarity Present
• Overload Current Present

Environment

• Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
• Operating Temperature -10 ~ 60°C (14 ~ 140°F)
• Temperature (Min. Operating) -10°C (14°F)
• Temperature (Max. Operating) 60°C (140°F)

Mechanism

• Dimensions (W x H x D) 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
• IP Rating IP30
• Mounting (DIN-rail) Yes
• Mounting (Pole Mount) -
• Mounting (Rack Mount) -
• Mounting (Wall) Yes
• Mounting (Stack) -
• Enclosure (Plastic) -
• Mounting (Panel) -

Ethernet Communication

• RJ-45 Transmission Speed 10/100 Mbps
• RJ-45 Port Number 8
• RJ-45 Port Connector Type RJ-45
• RJ-45 Transmission Distance 100 m
• Fiber Port Interface -
• Fiber Port Connector Type -
• Fiber Transmission Distance -
• Fiber Port Number -
• Fiber Transmission Speed -

Certification

• Safety UL 62368
• EMI CE, FCC Class A
• EMS EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8

Warranty

• Warranty Period 5 years

PoE Information

• PoE Budget -
• PoE Port Number -
• PoE Output -
• Support PoE No
