EKI-2705G-1GPI-AU
EKI-2705G-1GPI-AU
EKI-2705G-1GPI-AU
EKI-2705G-1GPI-AU
All Images
5 Year Warranty

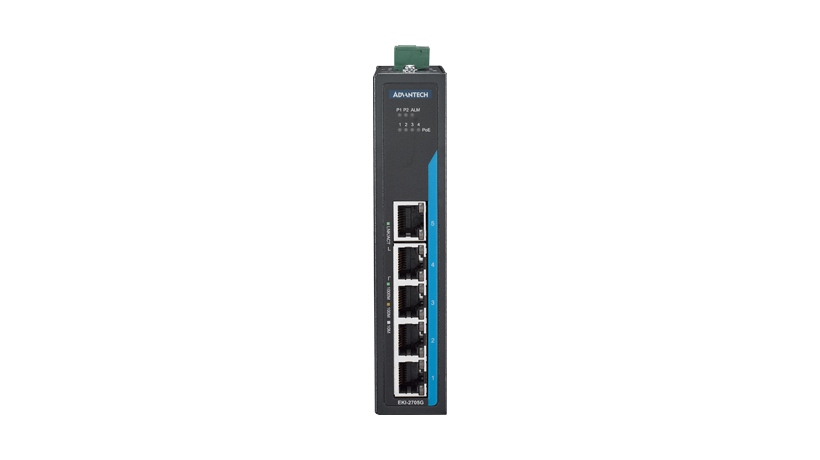

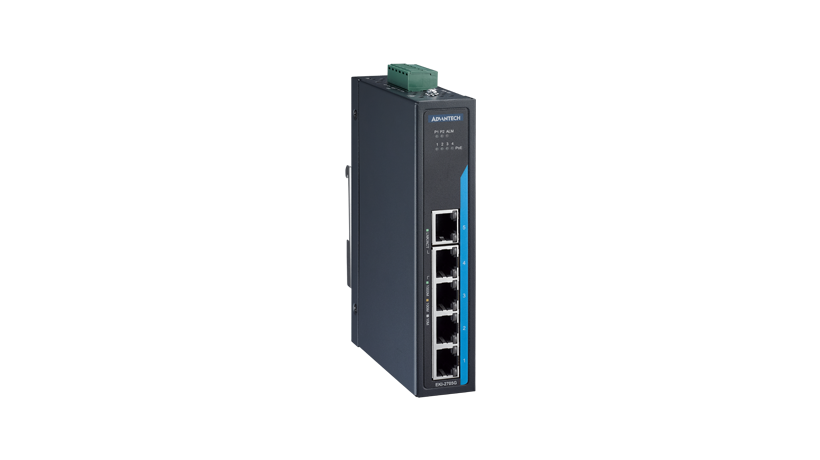

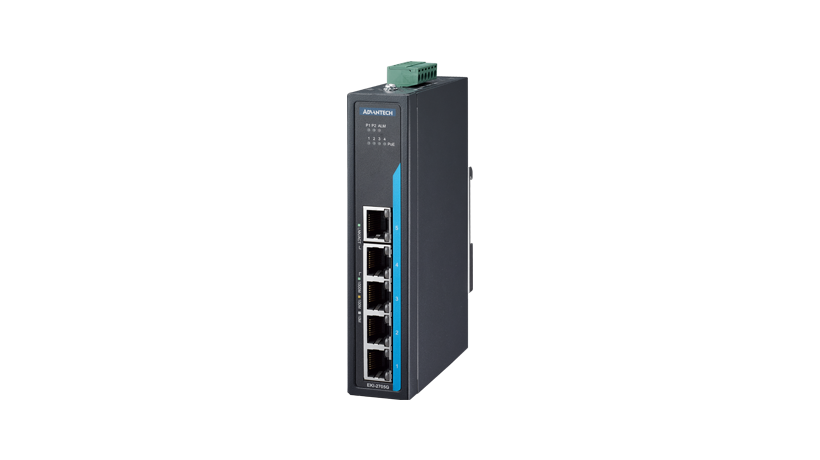

EKI-2705G-1GPI-AU 5GE Unmanaged Ind. PoE Switch W/T

Certifications CE CE CE CE
產品規格書 產品使用手冊產品3D圖 技術資源下載

NT$6,185 已含稅
加入購物車 直接結帳
EKI-2705G-1GPI-AU
EKI-2705G-1GPI-AU
EKI-2705G-1GPI-AU
prev
next
  • EKI-2705G-1GPI-AU
  • EKI-2705G-1GPI-AU
  • EKI-2705G-1GPI-AU
加入購物車

產品已加入購物車

> 前往結帳

週邊配件

EKI-2705G-1GPI-AU

主產品:EKI-2705G-1GPI-AU

5GE Unmanaged Ind. PoE Switch W/T

NT$6,185

週邊配件

  • DIN 導軌交流轉直流 100-240V 120W 48V

    NT$2,061

主產品 + 0週邊配件

小計 NT$6,185

加入購物車 直接結帳

詳細規格

  • Power Consumption Max 2W
  • Power Input (DC) 24 ~ 48 VDC
  • Power Connector Type 6-pin removable screw terminal (power & relay)
  • Power Operating Current 1A @ 24 VDC

  • Port Number 5

  • Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
  • Operating Temperature -40 ~ 75°C (-40 ~ 167°F)
  • Relative Humidity 10~95%

  • Enclosure (Metal) Metal
  • Dimensions (W x H x D) 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)

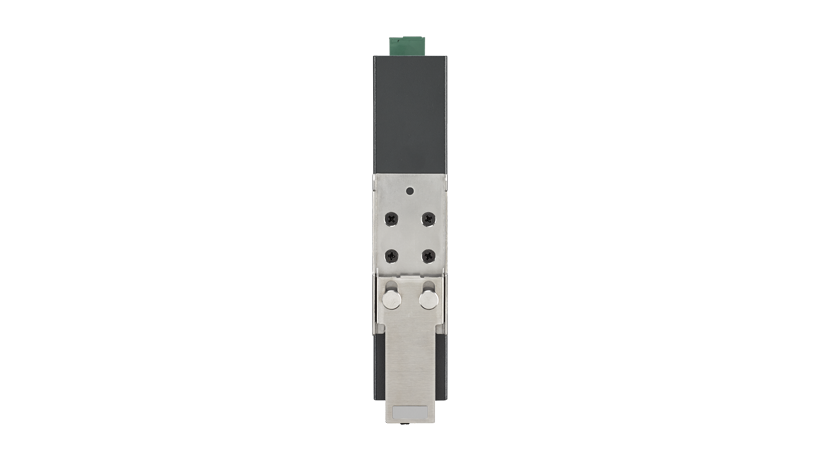

  • Mounting DIN-rail, Wall
  • IP Rating IP30
  • Weight 0.45 kg (1.0 lb)

  • RJ-45 Transmission Speed 10/100/1000 Mbps
  • RJ-45 Port Connector Type 5 x RJ-45
  • RJ-45 Transmission Distance 100 m

  • MAC Table Size 2K
  • Packet Buffer Size 1M bit
  • Jumbo Frame 9,216 bytes

  • Safety UL 62368
  • EMI CE, FCC Class A
  • EMS EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Shock IEC 60068-2-27
  • Freefall IEC 60068-2-32
  • Vibration IEC 60068-2-6
  • Ethernet Standard IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z

  • Time 1,697,086 hours
  • Method Telcordia(Relax), GB

  • Warranty Period 5 years

  • PoE Port Number 4
