5 Year Warranty

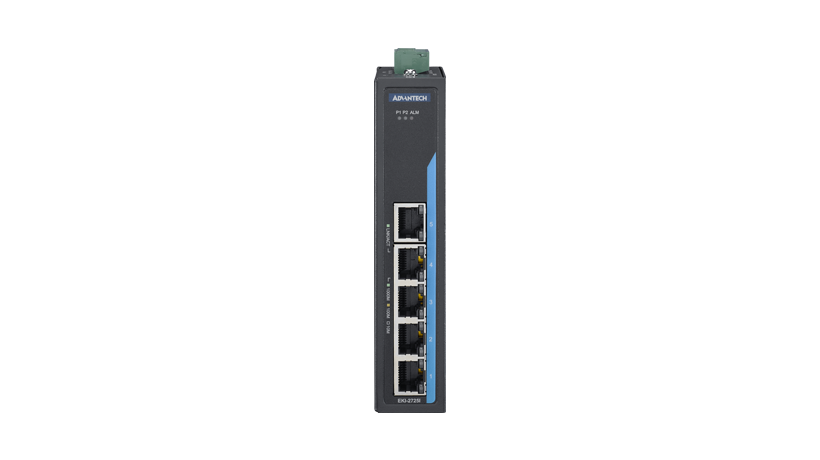

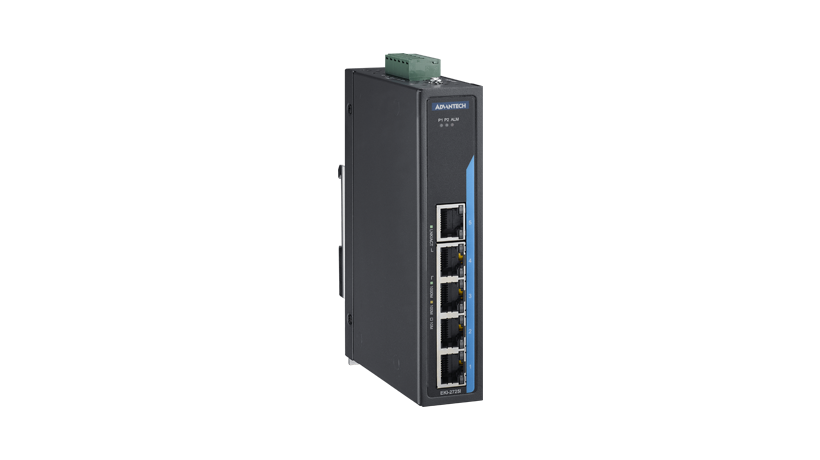

EKI-2725I-CE 5GE非網管型乙太網交換機,-40~75°C

  • 提供 5 個帶自動 MDI/MDI-X 的千兆乙太網埠
  • 支援 10/100/1000 Mbps 自動協商
  • 支持高達9KB的巨型幀傳輸
  • 提供超薄尺寸、DIN 導軌和IP30金屬機制
  • 支援冗餘 12 ~ 48 VDC 電源輸入和 P 故障繼電器
  • 預約(案場規劃)或(軟硬整合)諮詢服務
Certifications CE CE CE CE CE

已含稅
加入購物車 直接結帳

週邊配件

EKI-2725I-CE

主產品:EKI-2725I-CE

5GE非網管型乙太網交換機,-40~75°C

週邊配件

  • Power Cord UL 3P 10A 125V 183cm

    NT$77
  • FSP 適配器交流轉直流 100-240V 60W 24V C14 線端端子 2 針

    NT$458
  • A/D 100-240V10W 24V MDR DIN RAIL

    NT$356

{{relatedTitle}}

主產品 + {{numOfSelectedRelatedProducts}}週邊配件

小計 {{subTotalStr}}

詳細規格

Power

  • Power Consumption Max 2.5W
  • Power Input (DC) 12 ~ 48 VDC
  • Power Connector Type 6-pin removable screw terminal
  • Power Input (AC) -
  • Power Input (PoE) -
  • Power Input (Battery) -
  • Redundant Dual Inputs Yes

Protection

  • Reverse Polarity Present
  • Overload Current Present

Environment

  • Temperature (Storage Range) -40 ~ 85°C (-40 ~ 185°F)
  • Temperature (Operating Range) -40 ~ 75°C (-40 ~ 167°F)
  • Temperature (Min. Operating) -40°C (-40°F)
  • Temperature (Max. Operating) 75°C (167°F)

Mechanism

  • Dimensions (W x H x D) 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
  • IP Rating IP30

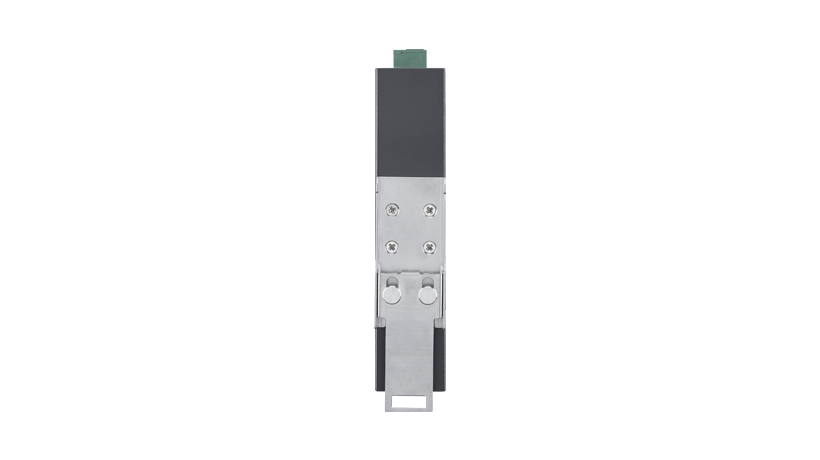

  • Mounting (DIN-rail) Yes
  • Mounting (Pole Mount) -
  • Mounting (Rack Mount) -
  • Mounting (Wall) Yes
  • Mounting (Stack) -
  • Enclosure (Plastic) -
  • Mounting (Panel) -

Ethernet Communication

  • RJ-45 Transmission Speed 10/100/1000 Mbps
  • RJ-45 Port Number 5
  • RJ-45 Port Connector Type RJ-45
  • RJ-45 Transmission Distance 100 m
  • Fiber Port Interface -
  • Fiber Port Connector Type -
  • Fiber Transmission Distance -
  • Fiber Port Number -
  • Fiber Transmission Speed -

Certification

  • Safety UL 60950-1
  • EMI CE, FCC Class A
  • EMS EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

Warranty

  • Warranty Period 5 years

PoE Information

  • PoE Budget -
  • PoE Port Number -
  • PoE Output -
  • Support PoE No
