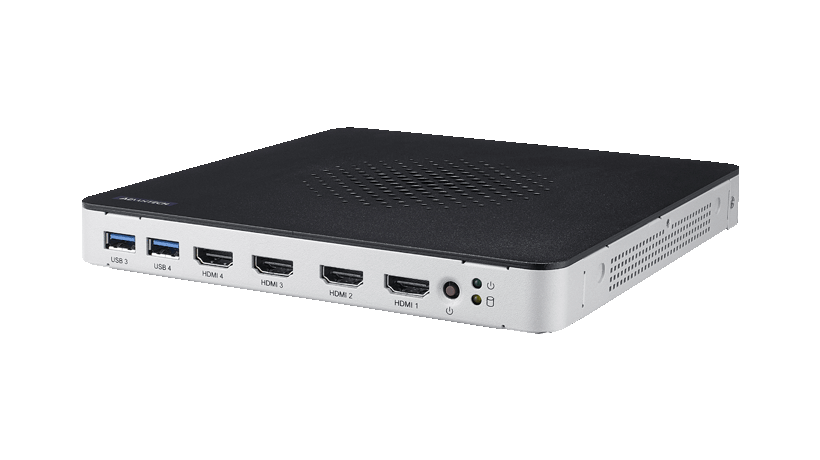

DS-0840B-U0A1E AMD R2312, 3 x HDMI w/ EDID, Fan, Barebone

詳細規格

I/O

• HDMI 4
• COM Port 1 (RS-232)
• USB2.0 2
• USB3.0 2
• Audio Line-Out, Mic-In
• IR 1

Memory

• Technology 2 x DDR4 260-pin SO-DIMM

Processor

• CPU AMD RyzenTM Embedded R2312 SoC with AMD RadeonTM Graphics

Storage

• M.2 M.2 2242 M Key
• NVMe 1 x PCIe x4 with M.2 M key

Operating System

• Microsoft Windows Windows 10

Environment

• Operational Temperature 0 ~ 40° C (32 ~ 104° F)

Ethernet

• Connector 2 x RJ-45

Watchdog Timer

• Output Interrupt, system reset

Power Requirement

• Voltage DC 19V input

Expansion

• M.2 1 x E-Key 2230 (PCIe2.1, USB2.0)

Physical Characteristics

• Mounting VESA/Wall/Din Rail Mounting
