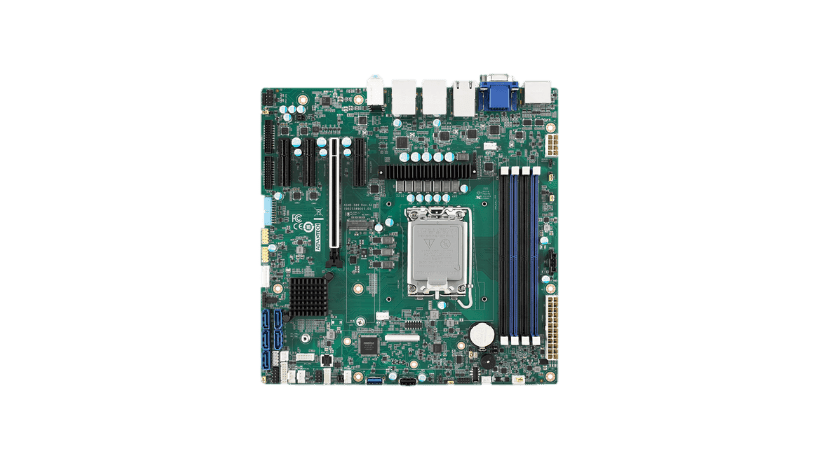

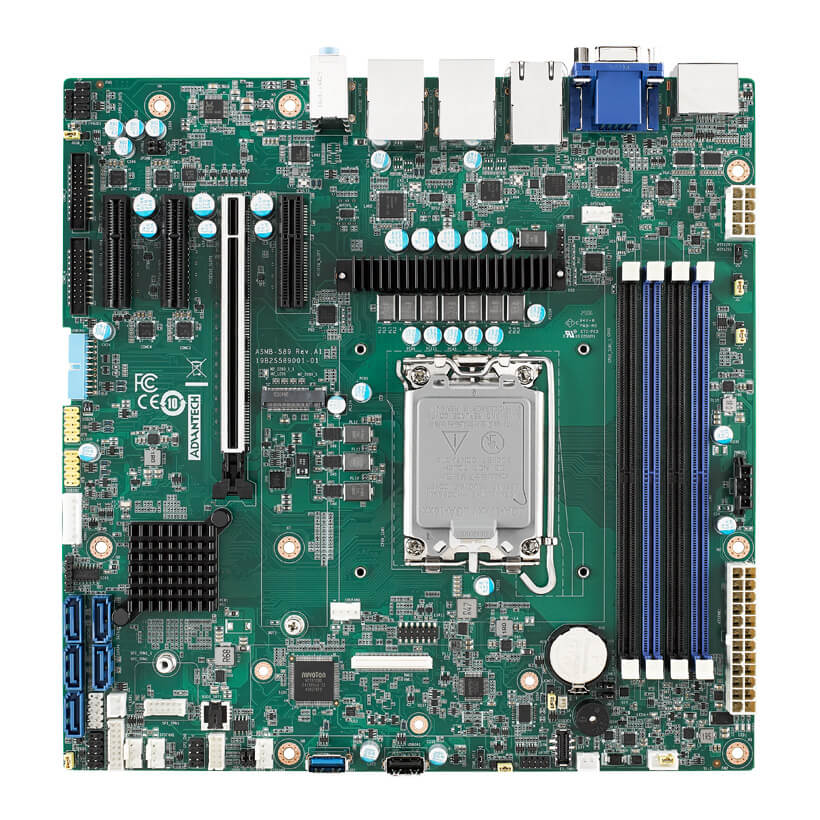

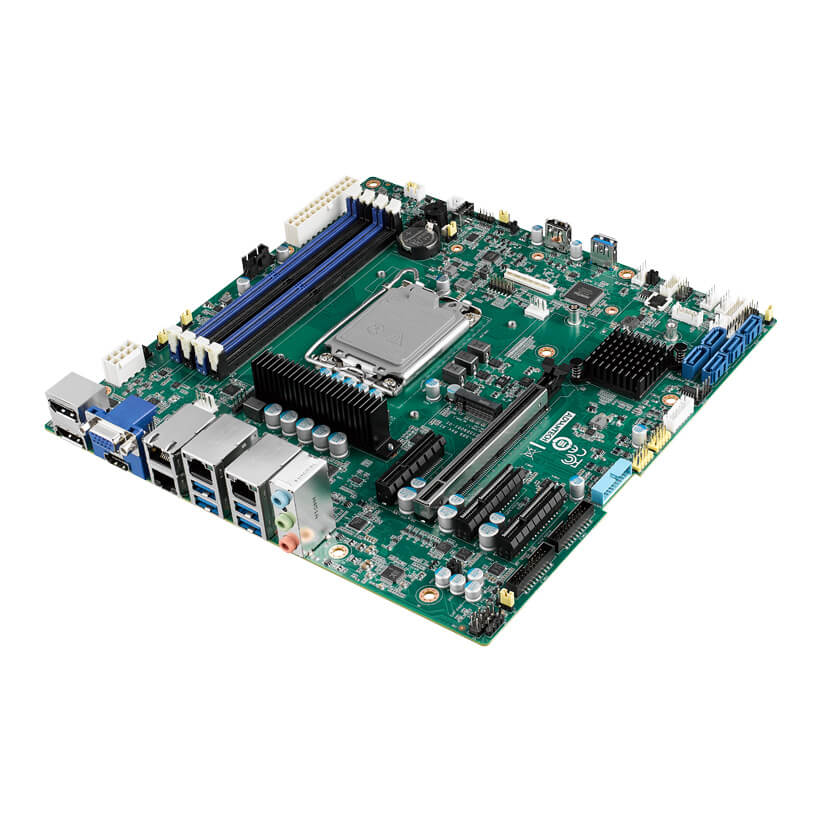

ASMB-589G2-00A1 LGA 1851 uATX Server Board W880 GbEx2

  • Powered by LGA 1851 Intel® Core™ Ultra 9/7/5 processors with W880 chipset for high-performance computing.
  • Supports up to 192 GB of DDR5 ECC/Non-ECC UDIMM memory at speeds of 5600/4800/4400 MT/s for demanding applications.
  • Features two PCIe x16 (Gen5) and two PCIe x8 (Gen4) slots for flexible expansion with high-speed peripherals.
  • Offers versatile display connectivity with DisplayPort, VGA, and HDMI 2.0 ports, supporting triple simultaneous displays.
  • Provides extensive storage options with five SATA 3 ports and eight high-speed USB 3.2 ports for peripheral connectivity.
  • Includes one M.2 2280 slot (PCIe x4) for fast NVMe SSD storage, enhancing system boot and application load times.
  • Designed with rackmount-optimized placement and positive airflow for enhanced thermal performance in server environments.
  • Ensures reliable operation in industrial environments with an ambient operating temperature range of 0 ~ 60°C (32 ~ 140°F).
  • 預約(案場規劃)或(軟硬整合)諮詢服務
Certifications CE CE
產品規格書 驅動程式 產品使用手冊 產品3D圖 技術資源下載

已含稅
即時庫存，可詢問右下角智能客服↘
加入購物車 直接結帳
ASMB-589G2-00A1
ASMB-589G2-00A1
加入購物車

產品已加入購物車

> 前往結帳

週邊配件

ASMB-589G2-00A1

主產品:ASMB-589G2-00A1

LGA 1851 uATX Server Board W880 GbEx2

週邊配件

  • F Cable IDE#2 20P-2.0/D-SUB 9P(M)x2 45cm W/BKT

    NT$109

{{relatedTitle}}

主產品 + {{numOfSelectedRelatedProducts}}週邊配件

小計 {{subTotalStr}}

加入購物車 直接結帳

詳細規格

Memory

  • Slots 4 x 288-pin UDIMM
  • Type and Speed DDR5 5600 MHz ECC/Non ECC
  • Channel 2
  • Per Slot Max Capacity 48 GB
  • System Max Capacity 192 GB

Storage

  • SATA Port 5

Security

  • TPM TPM 2.0 optional module card

LAN

  • Controller Intel® I210, Intel® I219, Intel® I226
  • 1GbE 2
  • 2.5GbE -

Processor System

  • CPU Intel® Core™ Ultra Processors
  • Chipset Intel® W880
  • Socket Q'ty 1 x LGA1851
  • TDP Up to 125 W

Front Panel & I/O

  • USB 2 x USB 3.2 Gen1 (one onboard header), 4 x USB 2.0 (2 onboard headers), 1 x USB 2.0 Type-A, 1 x USB3.2 Type-A, 1 x USB 3.2 Gen2 Type-C

Rear I/O

  • USB 4 x USB 3.2 Gen1
  • Display 1 x VGA port, 2 x DP ports, 1 x HDMI port

Watchdog Timer

  • Output System Reset

Cooling

  • System Fan 4 x system, 1 x CPU

Certification

  • EMC CE/FCC

Expansion

  • PCIe/PCI Module 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4

Environment

  • Operating Temperature 0 ~ 60 °C (32 ~ 140 °F)
  • Operating Humidity 10 ~ 95%
  • Non-Operating Humidity 10 ~ 95%, non-condensing
  • Non-Operating Temperature -40 ~ 85 °C (-40 ~ 185 °F)

System Management

  • IPMI IPMI2.0 compliant Advantech iManager

Physical Characteristics

  • Dimensions (L x H) 244 x 244 mm (9.6" x 9.6")
  • Form Factor MicroATX

Internal Storage

  • M.2 1 x NVMe 2280 (PCIe 4.0 x4)
