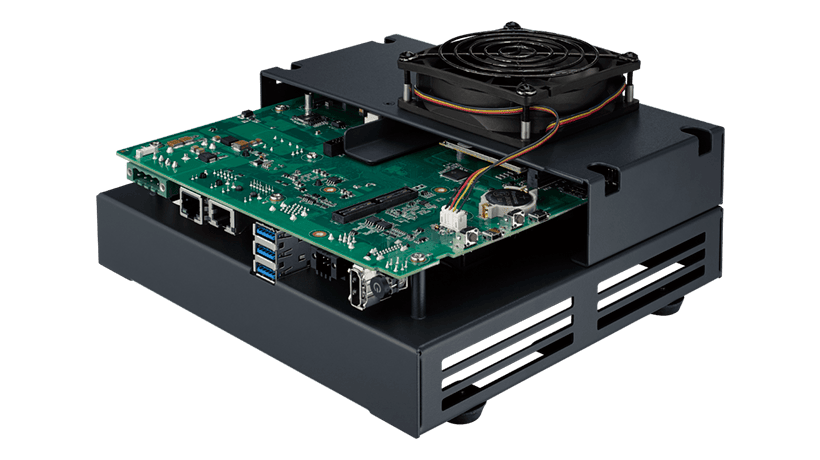

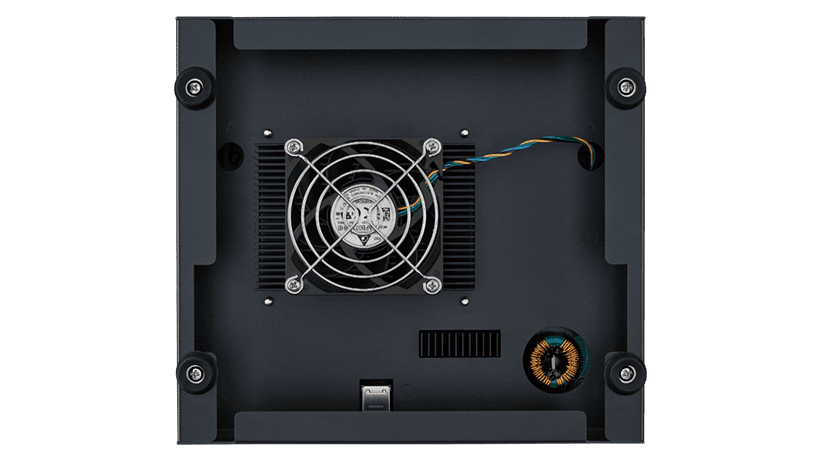

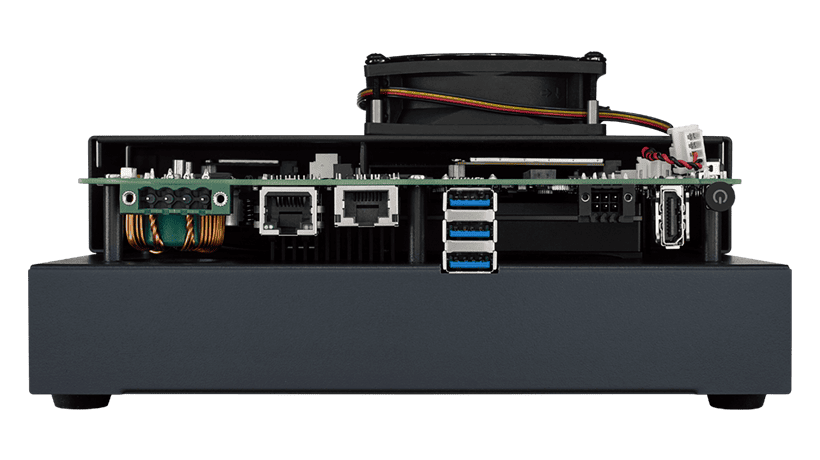

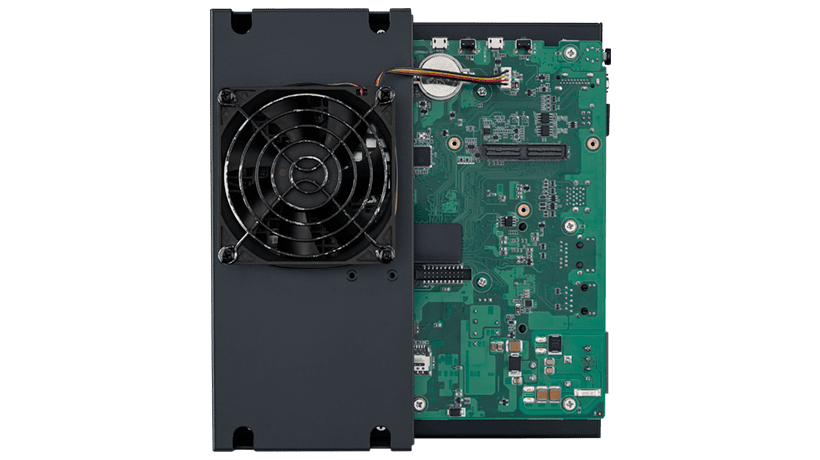

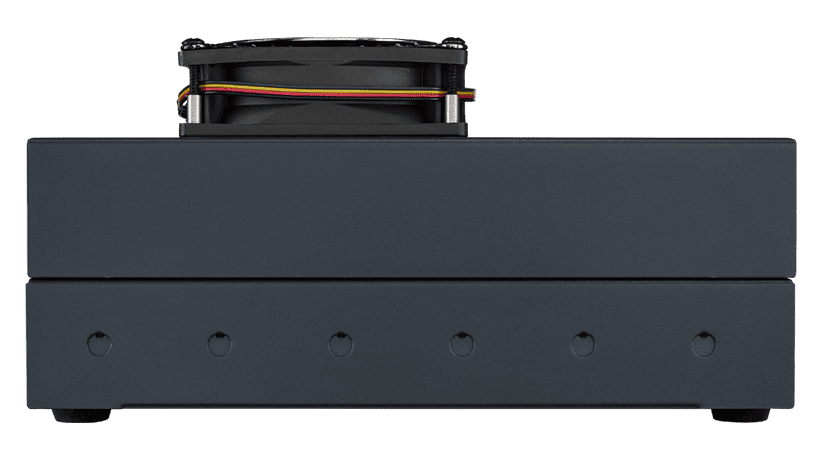

MIC-732D-AO6A1 邊緣AI系統 搭載 NVIDIA^® Jetson AGX Orin™ ⭐專為AMR而生⭐

詳細規格

Environment

• Operating Temperature -20 ~ 60 °C with 0.7 m/s air flow
• Operating Humidity 95% @ 40 °C (non-condensing)
• Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
• Shock 10G / 11ms

Mechanical

• Dimension (W x H x D) 191 x 209 x 75 mm (without fan), 191 x 209 x 112 mm (with fan)
• Installation Desktop / Wall mount

Certification

• EMC, Safety CE/FCC

Processor System

• CPU 12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3
• GPU 2048-core NVIDIA Ampere GPU with 64 Tensor Cores] Maximum Operating Frequency: 1.3GH
• Memory 64GB 256-bit LPDDR5 DRAM
• eMMC 64GM eMMC

Expansion

• GMSL 8-ch GMSL3.0/2.0 with FAKRA connectors
• SIM 2 x Nano SIM slots

Power

• Input 9~36VDC, Rated 12VDC
• Mode AT/ATX (Default AT)

I/O

• Ethernet 1 x 10/100/1000/2500 Mbp 1 x 10GbE
• Display HDMI (Max. resolution 3840x2160 @ 60Hz)
• USB External: 3 x USB 3.2 Gen 2, 2 x USB micro B, (1 from UART for debug) Internal: 1 x USB 2.0 (pin header)
• Serial Port 2 x RS-232/422/485 (On-board pin header)
• CAN 2 x CANBus

Expansion

• Mini PCIe 1 x mPCIe (Signal: PCIe + USB 2.0)
• M.2 1 x M.2 3052 (B-Key) (Signal: USB 3.0+USB 2.0) 1 x M.2 2230 (E-Key) (Signal: PCIe+USB2.0)

BSP

• Jetpack Above 6.0
