WISE-6610-A100-A LoRaWAN物聯網閘道器 LoRaWAN 閘道器，有923MHz可支援高達100個節點

  • 冗餘增強功能，可進行連續數據傳輸
  • 內嵌內存，用於提供用戶自定義軟件應用程序
  • 太陽能和電池電源應用功耗低
  • 支援導軌式和壁掛式安裝
  • 提供乙太網 RJ45 端口和 I/O，用於連接各種現場設備
  • 支援 LoRaWAN 通訊協議適用於封閉型和公共網絡應用
  • 遠程廣域物聯網閘道器
  • 預約(案場規劃)或(軟硬整合)諮詢服務
產品使用手冊 產品3D圖 技術資源下載

(未含稅)
加入購物車 直接結帳
WISE-6610-A100-A
WISE-6610-A100-A
WISE-6610-A100-A
WISE-6610-A100-A
加入購物車

產品已加入購物車

> 前往結帳

產品亮點

Low-Power, Wide-Area Wireless
Transmission Solution
Advantech LoRaWAN Nodes and Gateways

Advantech LoRaWAN nodes and gateways provide a device-to-cloud solution by simply sending collected data through the LoRa gateway to the cloud. They support both public LoRaWAN and private LoRaWAN solutions. Advantech EdgeLink inside the gateway helps users simply plug-and-play without worrying about data parsing processes.

Feature Highlights
Low-Power, Wide-Area Wireless Network Transmission

LoRaWAN technology is perfect for users who need long distance data transmission services provided by low power consumption devices. These devices efficiently and economically meet small data transmission needs in remote outdoor areas.

(FAQ)

LoRaWAN Gateway: WISE-6610
  • Supports LoRaWAN transmission technology and optional LTE connectivity
  • Two WISE-6610 gateways can backup each other as a transmission redundancy meachanism
  • Applies AES128 encryption mechanism to ensure data security

    (Datasheet)
LoRaWAN Node: BB-WSW
  • Waterproof IP67 housing designed against harsh outdoor environments
  • Supports RS-485, AI, DI, and DO for flexible deployment
  • Built with external antenna to guarantee high transmission quality

    (Datasheet)
Certifications

CE

FCC

RCM

NCC

Product Specifications

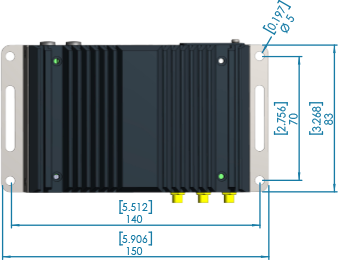

Dimensions
Unit: mm
WISE-6610 (3D model)
Installation

The WISE-6610 provides DIN-Rail and wall mounting options to fit the varying needs of different projects in the field (User manual)

Wall Mount

DIN-Rail Mount

Inside the Box
WISE-6610

詳細規格

Power

  • Power Consumption 9W
  • Power Input (DC) 9 ~ 36 VDC
  • Power Connector Type Terminal block
  • Redundant Dual Inputs VDC

Software

  • OS Support (X) Linux
  • Configuration SSH, Web Browser
  • Protocols DHCP Server, NAT/PAT, VRRP, Dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP Client/Server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/ v2c/ v3, Backup Routers, PPP, PPPoE, SSL, Port Forwarding, Host Port Routing, Ethernet Bridging, Network Server

Environment

  • Temperature (Storage Range) -40 ~ 80°C (-4 ~ 176°F)
  • Temperature (Operating Range) -40 ~ 75°C (-40 ~ 167°F)
  • Relative Humidity 10 ~ 95% RH

Mechanism

  • Enclosure (Metal) Yes
  • Dimensions (W x H x D) 150 x 37.5 x 83 mm (5.9" x 1.48" x 3.27")
  • IP Rating IP30
  • Weight 0.52kg
  • Mounting (DIN-rail) Yes
  • Mounting (Wall) Yes
  • LED Indicator PWR, DAT, WAN, ETH

Ethernet Communication

  • RJ45 Transmission Speed 10/100 Mbps
  • Ethernet Port Number 1
  • RJ45 Port Connector Type RJ45

Wireless Communication

  • Wi-Fi Standard LoRaWAN
  • Wi-Fi Antenna Connector Type RP-SMA Female
  • Wi-Fi Antenna Number 1
  • Wi-Fi Free Space Range 10km
  • Frequency 923MHz

Certification

  • EMC RCM
  • Shock IEC 60068-2-27
  • Freefall IEC 60068-2-32
  • Vibration IEC 60068-2-6
  • LoRa LoRa
  • RCM RCM
  • RF RCM/NCC

I/O Communication

  • Digital I/O Port Connectorl 4-way Molex moni-fit connector
