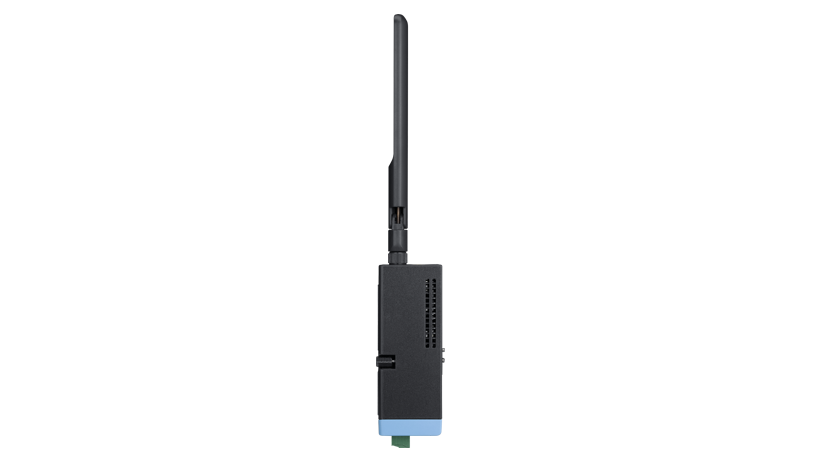

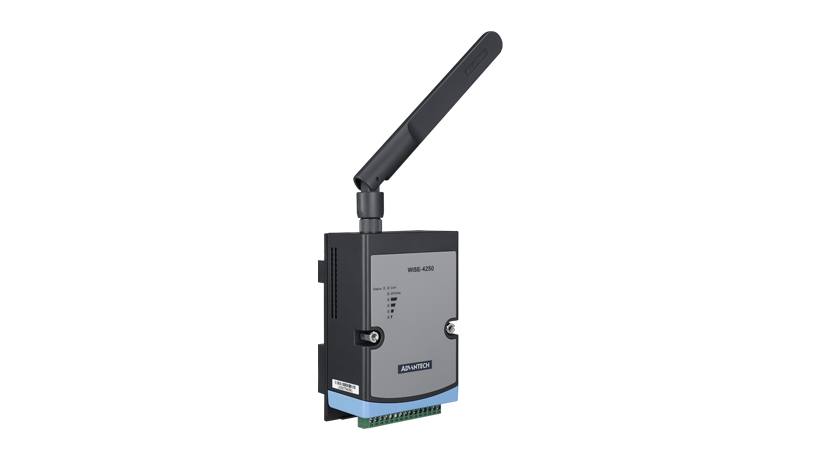

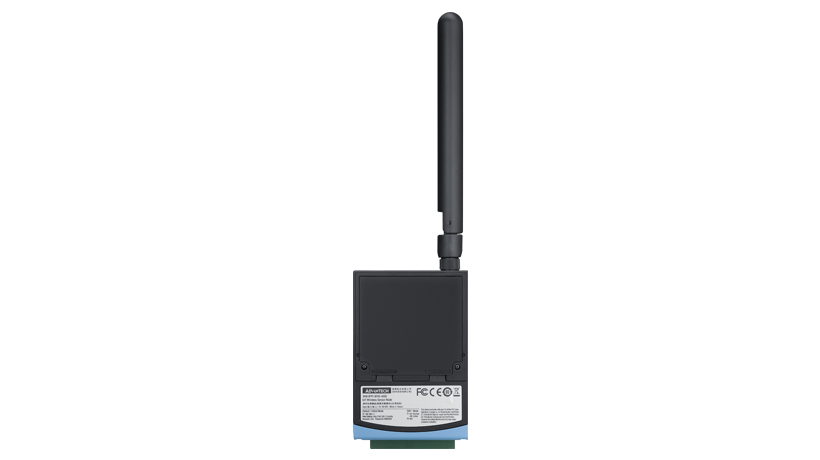

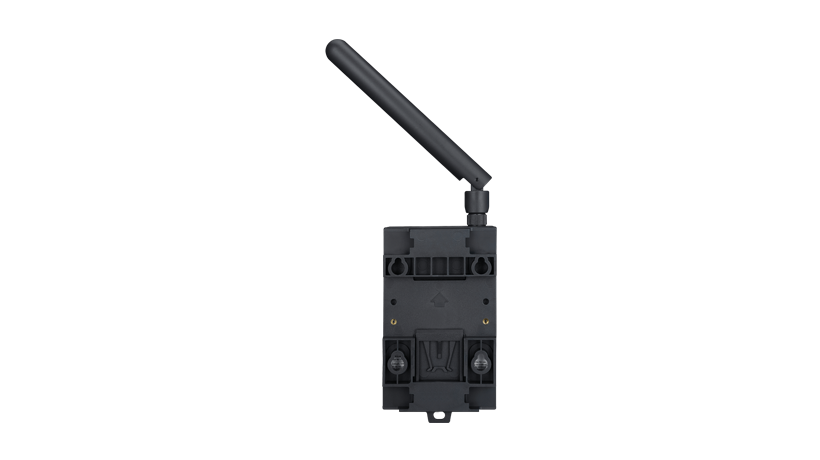

WISE-4250-S214 WISE-4250 with 4AI+4DI

詳細規格

Analog Input

• Channels 4
• Input Range ±0.15V, ±0.5V , ±1V, ±5V, ±10V, ±20 mA, 0~20 mA, 4~20 mA
• Burn-out Detection Yes (4~20 mA only)*
• Sampling Rates(S/s) 10 Hz (sum)
• Resolution(Bits) 16-bit

Hardware

• Watchdog Timer 1.6 s
• LED Indicators Status, Line-power, Wireless Com, Initial/Normal, Signal Strength
• Certification CE, FCC, RoHS, TELEC, NBTC
• Power Consumption 1.2 W @ 24 VDC

Counter/Encoder Input

• Channels 4
• Counting Range 32-bit
• Max. Input Frequency 200 Hz

Environment

• Relative Humidity 20~95% RH (non-condensing)
• Vibration Protection 2 Grms, random
• Operating Temperature -25~70 °C (-13~158 °F)
• Storage Temperature -40~85 °C (-40~185 °F)
• Storage Humidity 0~95% RH (non-condensing)
• Isolation Voltage 3,000 VDC

Expansion Function

• Antenna 1x SMA hole on the top

Power Requirements

• Input Voltage 10~50 VDC

Mechanical

• Mounting DIN 35 rail, Wall, Pole
• Weight (Net) 160 g

Wireless Communication

• Frequency Band IEEE 802.11 a/b/g/n/ac 2.4/5 (GHz)
• Standard (Technology) WIFI
