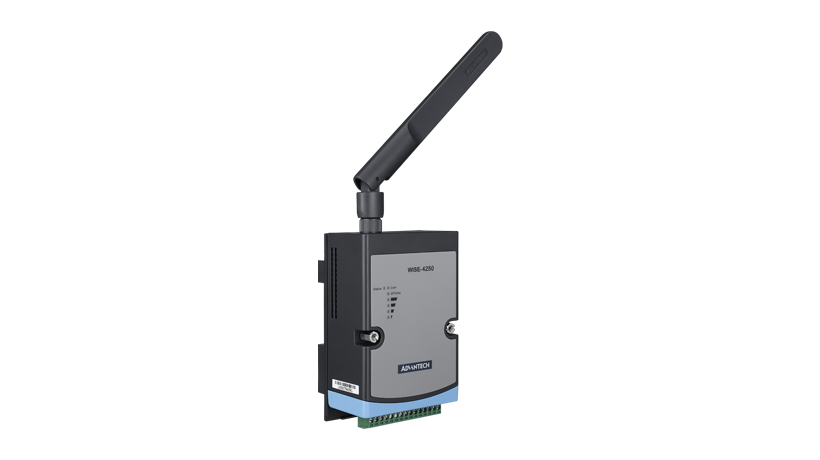

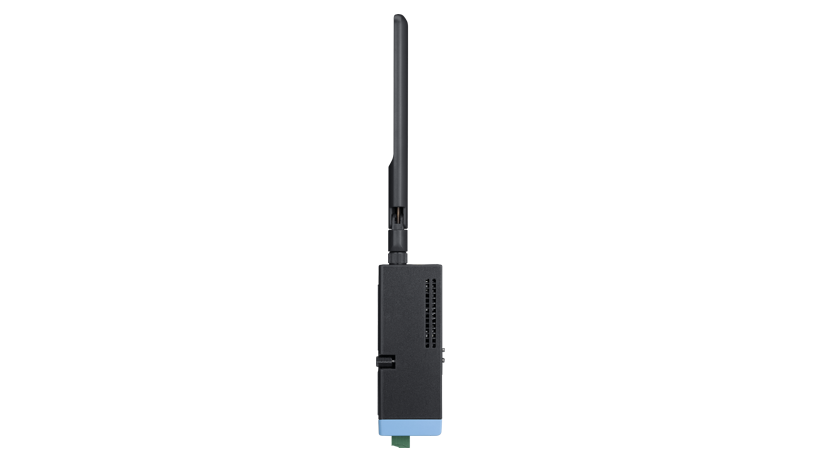

WISE-4250-S251 WISE-4250 with 6DI+1RS-485

詳細規格

Hardware

• Watchdog Timer 1.6 s
• LED Indicators Status, Line-power, Wireless Com, Initial/Normal, Signal Strength
• Certification CE, FCC, RoHS, TELEC, NBTC
• Power Consumption 1.2 W @ 24 VDC

Protection

• Short Circuit Protection Yes

Counter/Encoder Input

• Counting Range 32-bit
• Max. Input Frequency 3 kHz

I/O Interface

• Serial Ports 1 x RS-485

Digital Input

• Input Voltage Dry Contact Logic level 0: open Logic level 1: close to Iso.GND
• Channels 6 (TTL)
• Digital Filter 0.1 ms

Environment

• Relative Humidity 20~95% RH (non-condensing)
• Vibration Protection 2 Grms, random
• Operating Temperature -25~70 °C (-13~158 °F)
• Storage Temperature -40~85 °C (-40~185 °F)
• Storage Humidity 0~95% RH (non-condensing)
• Isolation Voltage 3,000 VDC

Expansion Function

• Antenna 1x SMA hole on the top

Power Requirements

• Input Voltage 10~50 VDC

Mechanical

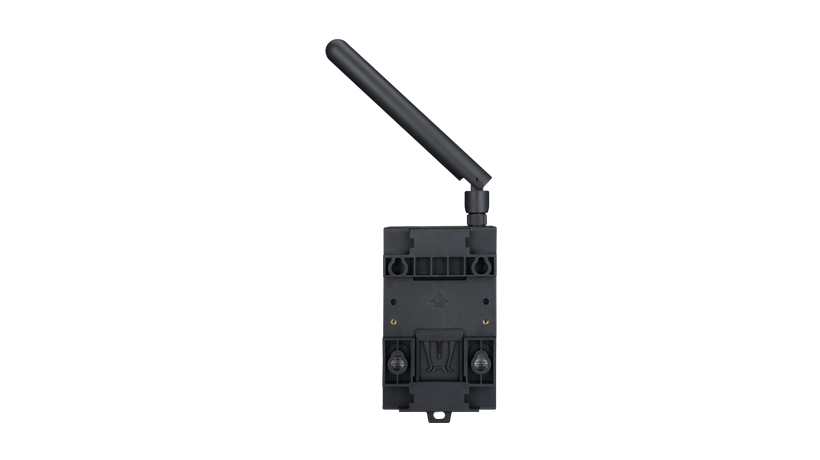

• Mounting DIN 35 rail, Wall, Pole

Wireless Communication

• Frequency Band IEEE 802.11 a/b/g/n/ac 2.4/5 (GHz)
• Standard (Technology) WIFI
