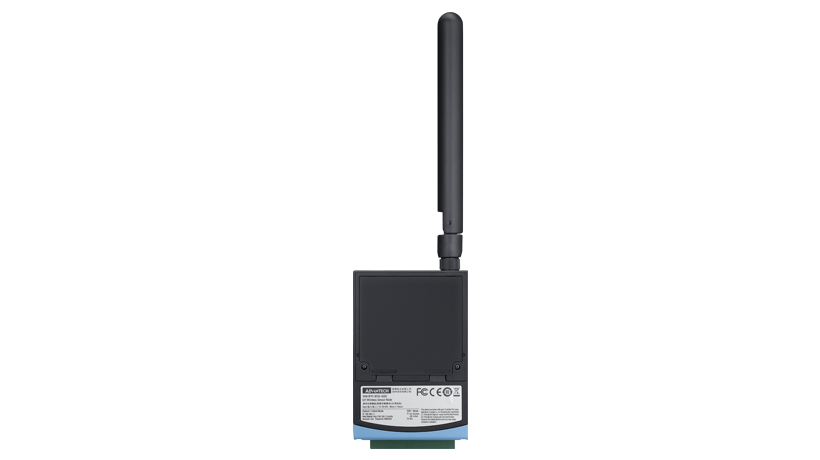

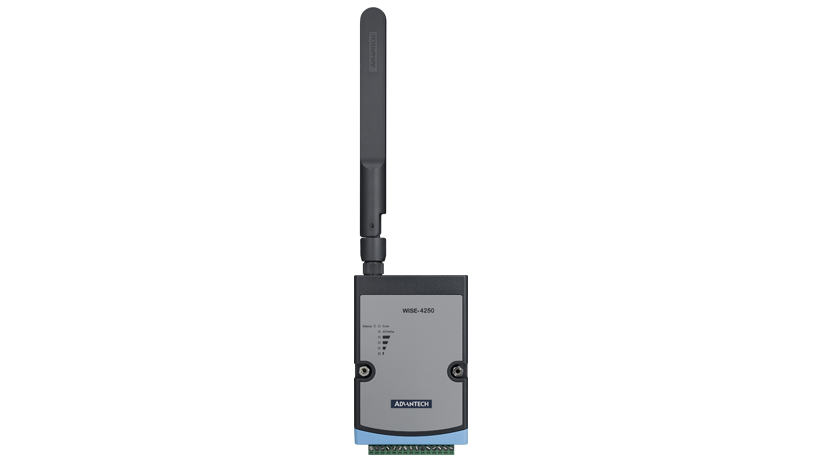

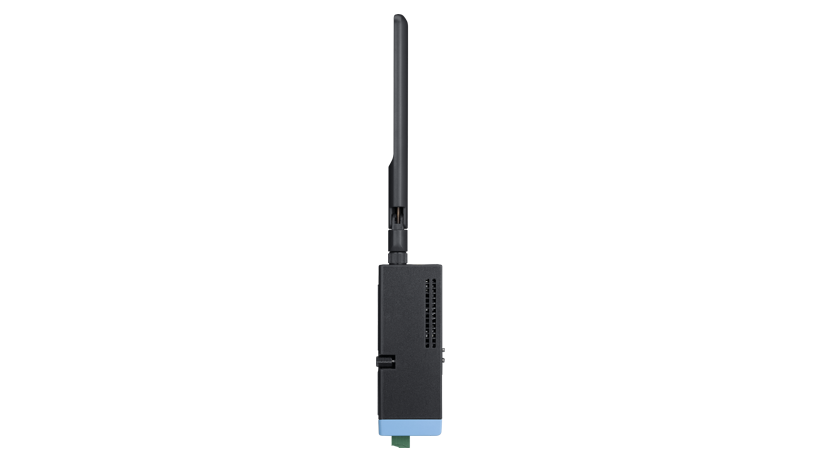

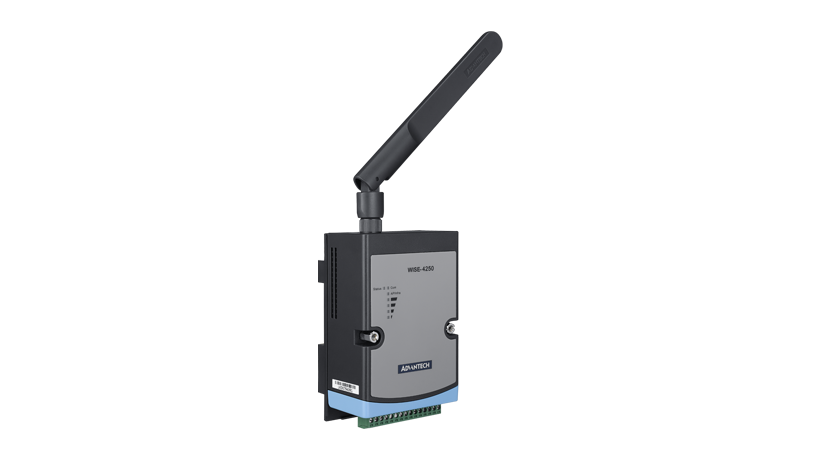

WISE-4250-S260 WISE-4250 with 4DI+4Relay Output

詳細規格

Hardware

• Watchdog Timer 1.6 s
• LED Indicators Status, Line-power, Wireless Com, Initial/Normal, Signal Strength
• Certification CE, FCC, RoHS, TELEC, NBTC
• Power Consumption 1.2 W @ 24 VDC

Protection

• Short Circuit Protection Yes

Counter/Encoder Input

• Counting Range 32-bit
• Max. Input Frequency 1 kHz

Digital Input

• Channels 4
• Isolation Protection 3,000 VDC
• Digital Filter 0.1 ms

Environment

• Relative Humidity 20~95% RH (non-condensing)
• Vibration Protection 2 Grms, random
• Operating Temperature -25~70 °C (-13~158 °F)
• Storage Temperature -40~85 °C (-40~185 °F)
• Storage Humidity 0~95% RH (non-condensing)
• Isolation Voltage 3,000 VDC

Relay Output

• Resistance Min. 1 GΩ min.
• Contact Rating (Resistive) 5 A @ 30 VDC, 5 A @ 250 VAC
• Channels 4 Form A

Power Requirements

• Input Voltage 10~50 VDC

Mechanical

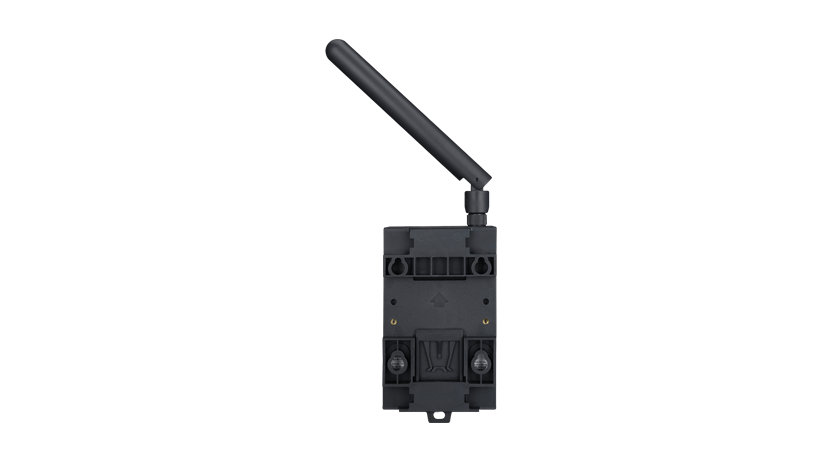

• Mounting DIN 35 rail, Wall, Pole
• Weight (Net) 0.16 kg

Wireless Communication

• Frequency Band IEEE 802.11 a/b/g/n/ac 2.4/5 (GHz)
• Standard (Technology) WIFI
