EKI-5728

型號	EKI-5525/EKI-5525I	EKI-5528/EKI-5528I	EKI-5725/EKI-5725I	EKI-5728/EKI-5728I

通訊介面
Ports Number	5	8	5	8
10/100Base-T (X)	5	8	-	-
100BaseFX	-	-	-	-
10/100/1000Base-T (X)	-	-	5	8
管理功能

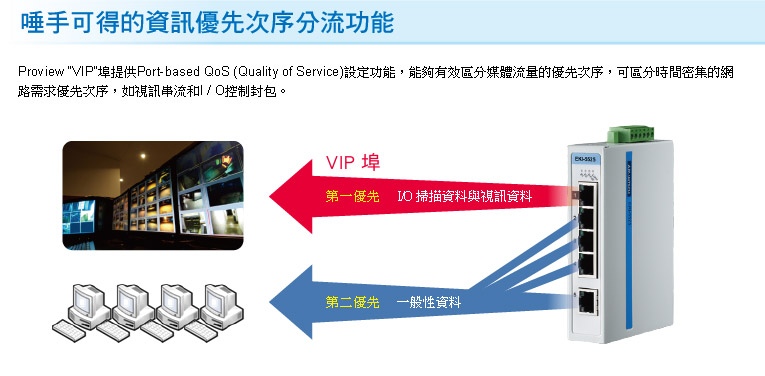

VIP Port	1	2	1	2
Modbus TCP	V	V	V	V
EtherNet/IP	-	-	-	V
Configuration	V	V	V	V
SNMP	V	V	V	V
電源
2 x Unregulated 48 V DC	全部機種均有此功能
Relay Output	全部機種均有此功能
機構
DIN-rail Mount	V	V	V	V
Wall Mount	V	V	V	V
Rack Mount	-	-	-	-
IP Level	IP30	IP30	IP30	IP30
保護機制
ESD (Ethernet)	全部機種均有此功能
Surge (EFT for power)
Power Reverse
工作溫度範圍
-10 ~ 60°C (14 ~ 140°F)	EKI-5525	EKI-5528	EKI-5725	EKI-5728
-40 ~ 75°C (-40 ~ 167°F)	EKI-5525I	EKI-5528I	EKI-5725I	EKI-5728I
認證
Certifications	CE, FCC, UL/cUL 60950-1,Class I, Division 2, ATEX, IECEx, UL 508
CC-Link IE Field	-	-	V	V
