    1. Accelerate
      Your Digital Transformation
      with UNO-247 IoT Edge Gateway!

  • UNO-247 is an entry-level fanless IoT edge gateway aimed at information technology (IT) applications. Equipped with an Intel® Celeron® J3455 processor, diverse I/O, and VGA and HDMI display interfaces, UNO-247 is designed to deliver high-performance computing at a competitive price.

  • Feature Highlights

    1. Comprehensive System I/O
      UNO-247 features diverse I/O to facilitate a wide range of applications.
      • I/O: 4 x RS-232, 2 x RS-485, 2 x LAN, 2 x USB 3.0, 2 x USB 2.0
      • Display: 1 x VGA, 1 x HDMI
      • Expansion: 1 x mPCIe slot, 1 x M.2 (2232, E Key)
      • Storage: 1 x mSATA, 1 x 2.5”SATA SSD/HDD
    2. Increased Accessibility and Reliability
      • To reduce system downtime and ensure convenient maintenance, the optimized design allows the installation of memory, storage, and extension modules without needing to disassemble the entire chassis.
      • To prevent unexpected power disconnections or interruptions, the power adaptor is equipped with a threaded DC jack for locking the connector in place, ensuring a stable and reliable power supply.

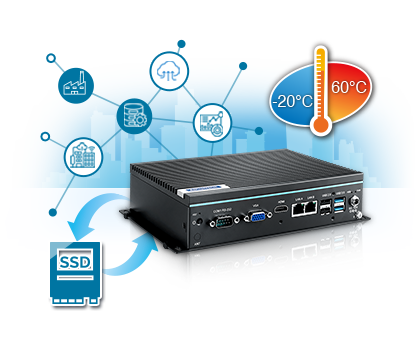

    3. Ruggedized for Industrial Applications
      • Cable-free, fanless design provides internal space savings and reduces the accumulation of dust and foreign contaminants for operation in industrial environments
      • Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) with optional extended-temperature memory and SSD

  • Product Specifications

    1. Dimensions
    2. Unit: mm
    1. Mount Options
    2. ATo ensure flexible installation in a wide range of operating environments, UNO-247 supports wall, stand, and DIN-rail mounting (with optional DIN-rail mount kit).

    1. Product Contents
