Smaller but Smarter UNO-238, the first Edge Computer with 8th Generation Intel Core Processors

Smaller but Smarter

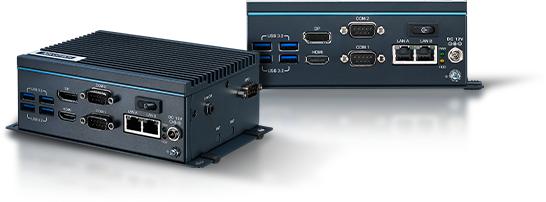

UNO-238 Edge Computer with 8th Gen Intel® Core™ Processor

UNO-238 is a high-performance edge computer aimed at IT-level applications. Equipped with the latest 8th gen Intel® Core™ i processor, diverse I/O interfaces, 32 GB eMMC memory, swappable RAM, and dual M.2 expansion card slots, UNO-238 provides optimal efficiency and superior edge computing for a competitive price.

Feature Highlights

Compact Form Factor with Enhanced Computing Performance

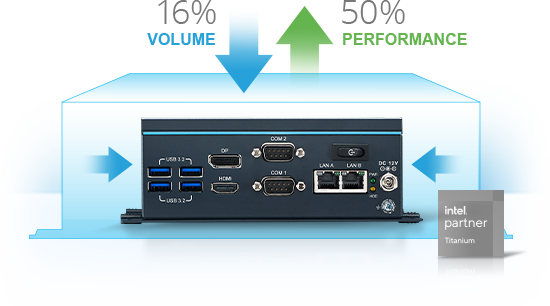

8th gen Intel processor delivers 50% increased performance compared to the previous model
Compact design (150 x 106 x 60 mm/5.91 x 4.22 x 2.36 in) is 16% smaller than its predecessor

Comprehensive I/O Supports Diverse Applications

1 x M.2 3042/3052 B-key socket for a 5G/LTE module
1 x M.2 2230 E-key socket for a Wi-Fi module
4 x USB 3.2 Gen 2 for increased data transfer speeds (double that of Gen 1)

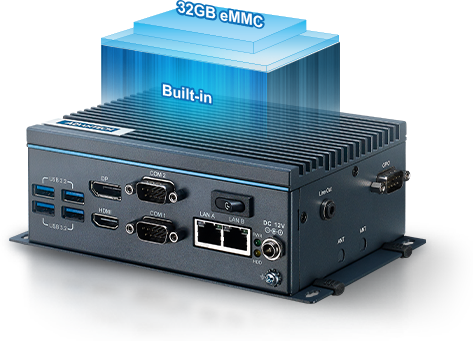

32 GB eMMC memory on board
2 x GbE, 8 x GPIO, 1 x HDMI, and 1 x DisplayPort

Increased Accessibility and Reliability

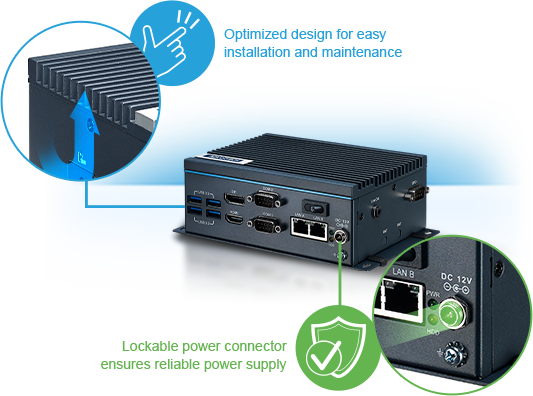

To reduce system downtime and ensure convenient maintenance, UNO-238 features an optimized design for easy RAM access and configuration. This allows customers to adjust RAM capacity according to their requirements and complete RAM installation without disassembling the entire chassis.
To prevent unexpected power interruptions or disconnections, the power adapter is equipped with a threaded DC jack that locks the connector in place to ensure stable and reliable power supply.

Target Applications

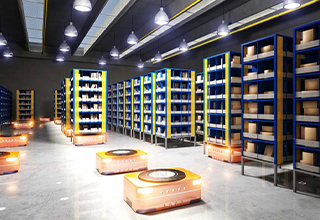

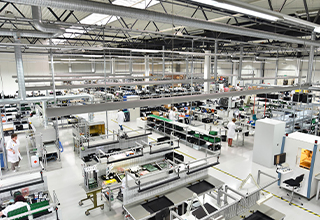

The optimized processing performance, compact form factor, and flexible I/O make UNO-238 ideal for a wide range of factory applications, including factory automation, process automation, and manufacturing execution system (MES) integration.
