IMC-595 Three-in-One Mega PoE Media Converter for High Flexibility Network Deployment

IMC-595 three-in-one mega PoE media converter is a compact, industrial grade solution that can serve as a fiber-to-Ethernet media converter, a 90W x 2 PoE injector, and/or a light management Ethernet switch. It comes with 2 x Gigabit 90W PoE ports in a compact 9 x 10 cm (3.54 x 3.9 in) housing and supports wide operating temperatures (-40 ~ 75 °C/-40 ~ 167 °F). These attributes make IMC-595 an excellent choice for applications in harsh environments that require slight network deployment changes.

Three-in-one design for high flexibility network deployment

  • Converts between fiber and copper cables
  • Supports up to 180W PoE power output
  • Supports light management functions for remote monitoring

Compact design with wide operating temperature support

  • Features a 9 x 10 cm (3.54 x 3.9 in) , palm-sized form factor
  • Accommodates the wide operating temperatures (-40 ~ 75 °C/-40 ~ 167 °F)

Delivers 90W power and Gigabit data on the same cable to two PoE P.D. devices.

  • Downward compatible for 15, 30, and 60W PoE PD devices
  • Extends device lifecycles and maximizes return on investment

Remote control and management for viewable device status

  • Supports switch/injector mode setting by SNMP/iView
  • Supports SNMP/iView for remote management
Watch video
Read Press Release
Certifications

CE

FCC

RoHs

Product Specifications

Dimensions

Unit: mm
IMC-595
Front view
Side View
Back View
Download datasheet

Mounting

Advantech's IMC-595 series features several mounting options, accommodating different field installations

DIN-Rail Mount

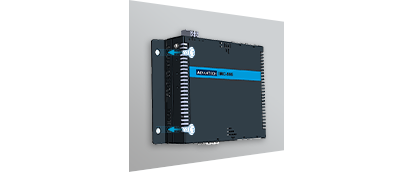

Wall Mount
Download document

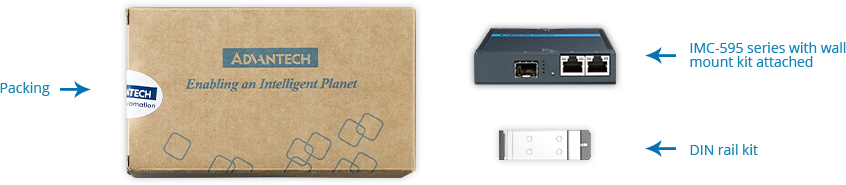

Inside the Box

IMC-595MPI-A
