Industrial Display Solutions

IDP31-215W Bezel-less Widescreen Touch Monitor for Outdoor Kiosk Applications

IDP31-215W

Outdoor Kiosk Display Solution Quick Guide
- Guaranteed Ultra-High-Brightness and Superior Color Solution

  Advantech's IDP31-215W display series leverage 1200nits high-brightness LCDs capable of clear visibility in direct sunlight to produce excellent solutions for outdoor applications.

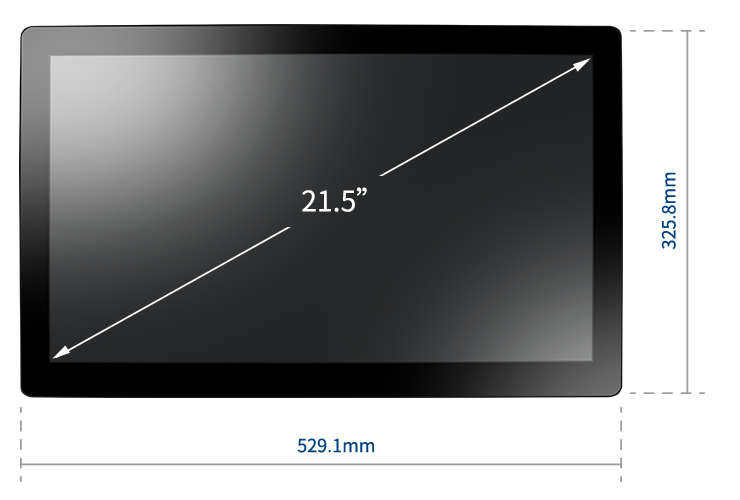

Large Screen

16:9 widescreen aspect ratios are the standard size for most high-definition computer monitors and televisions. It delivers maximum video image performance to signage solutions.
- IDP31-215W
Easy Integration

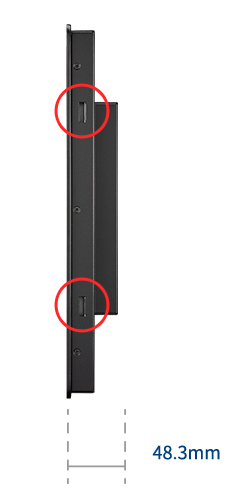

IDP31-215W can be used in either portrait or landscape modes using a VESA mount. This solution’s metal chassis creates a rugged and stable platform for a wide range of applications and solutions.

Product Specifications

Display Features	Specs
Model	IDP31-215WPK2HIC1
Backlight	LED
Resolution	1920x1080	Full HD
Brightness	1200 cd/m2	Measured at typical operating voltage
Viewing Angle	89°/89°/89°/89°	Left/Right/Up/Down
Max Colors	16.7M
Contrast Ratio	1000:1
Response Time	22ms
Backlight Lifetime	50,000 hours
Touchscreen Type	Projected Capacitive
Surface Hardness	7H
Transparency	85%
Cover Glass Thickness	1.8 mm
Operating Temperature	0 ~ 55 °C
Storage Temperature	-20 ~ 60 °C
Humidity	90% RH @ 40 °C	Non-condensing

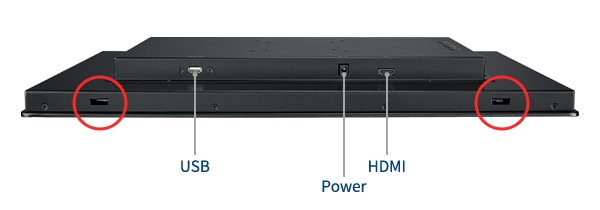

Input/Output	1 x HDMI, 1 x 12 VDC Jack, 1 x USB	USB is reserved for the connection to enable touch only
OSD	Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Screen Settings, Color Temp, Language OSD settings, Recall, Auto Adjust
Power Consumption	43W
Power Input	12V_DC
Mounting	VESA/Panel mount
IP Rating	Front IP67
Weight	5.4 kg

Your Reliable Industrial Display Partner

Advantech, a global leader in industrial solutions, has more than 15 years of experience building high-quality edge industrial displays. To meet demands for versatile applications, we design and manufacture innovative display systems focused on public information, factory automation, medical, and gaming applications.
Customization

Did you find a solution from the options above? Are you looking for something customized to your specific needs? Regardless of your needs, we have the answer.
