Connect Farther, Connect Faster

Extending Network Coverage with IMC-300 Series Ethernet-to-Fiber Media Converters

Advantech’s IMC-300 series Ethernet-to-fiber media converters provide network operators with reliable, miniature solutions for connecting and extending devices into existent networks. They support 10/100Mbps to 10Gbps transmission speeds and can reach distances up to 80km using various model selections.

Feature Highlights

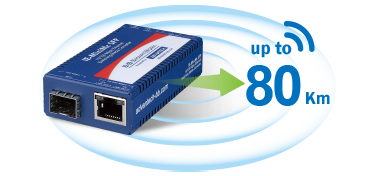

Extend Network Coverage up to 80 km

No need to replace any existent devices
Extend transmission distances up to 80km
Free from electronic interference

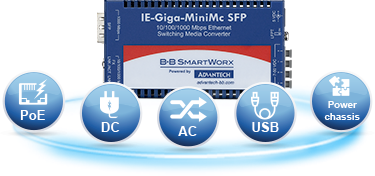

Variety of Power Sources

Universal AC power adapter
DC power input via terminal block
USB power cable
PoE-PD input
Centralized powered chassis for central AC power management

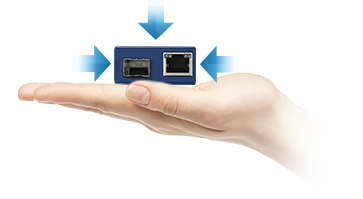

Miniature and Reliable Ethernet-to-Fiber Solutions

Ultra-small industrial media converters measuring only 3.5 x 2 inches
Easy installation in every corner
Plug–and-play feature that increases space and power usage efficiency

Smart Wiring Options for Various Application Needs

Fiber-to-copper deployment

Good for point-to-point applications and applications where fiber connectivity is already in place

Copper-to-fiber-to-copper deployment

Good for control centers and applications with no fiber connectivity

IMC-300 Selection Guide


Model		IMC-350I	IMC-370I	IMC-390	IMC-310I
Description		Industrial Ethernet-to-fiber media converters	Industrial Gigabit Ethlernet-to-fiber media converters	Industrial PoE Gigabit Ethernet-to-fiber media converters	Industrial Multi-Gigabit Ethernet-to-fiber media converters
Speed	10/100Mbps	v	-	-	-
	10/100/ 1000Mbps	-	v	v	-
	100/1000/ 10GMbps	-	-	-	v
PoE	PD	v	-	-	-
PoE	PSE	-	-	v	-
Power source	AC	v	v	v	v
	DC	v	v	v	v
	USB Cable	v	v	-	-
	Centralized powered IMC-318I Chassis	v	v	-	-
Dimensions		21.1 x 45.7 x 85.1 mm	21.1 x 45.7 x 85.1 mm	20.32 x 92.58 x 99 mm	109.2 x 22.9 x 101.6 mm

v : supported, - : not supported

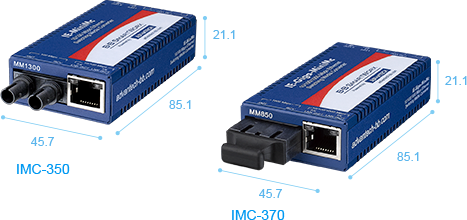

Dimensions

Unit: mm [inch]

IMC-350 and IMC-370 Series

Mounting

The Advantech IMC-350 and IMC-370 media converter series supports Din-rail mounting method to fit the varying needs of different projects in the field.
