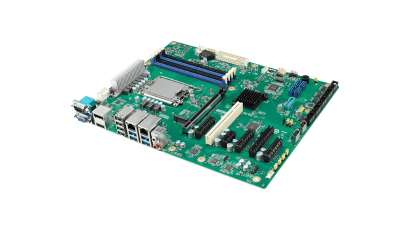

AIMB-789G2-00A1 LGA1851 ATX Q870/iBMC/DP/HDMI/2GbE/M.2/14USB

詳細規格

Processor System

• CPU Intel® Core™ Ultra processors (Series 2)
• TDP Up to 65 W
• Base Frequency Up to 3.5 GHz
• Core Number Up to 24
• L3 Cache Up to 36 MB
• BIOS AMI 256 Mbit SPI Flash
• Chipset Intel® Q870
• Socket Q'ty 1 x LGA1851

Memory

• Type and Speed Dual-Channel DDR5 5600 MHz (non-ECC)
• Slots 4 x 288-pin UDIMM
• System Max Capacity 192 GB

Expansion Interface

• PCI Express x 16 1
• PCI Express x 8 1
• PCI Express x 4 3
• PCI Express x 1 1
• PCI 1

LAN

• Controller LAN1: Intel® I219-LM, LAN2: Intel® I210-AT
• Connector 1 x RJ45
• Interface 10/100/1000 Mbps

WatchDog Timer

• Output System Reset
• Interval Programmable 1~255 sec

Rear I/O Interface

• Display 1
• USB3.0 4
• USB2.0 4
• Audio 2 (Mic-in, Line-out)
• Ethernet 2
• VGA 1
• Serial 1 (RS-232)
• HDMI 1

Environment

• Operating Temperature 0 ~ 60 °C (32 ~ 140 °F)
• Non-Operational Temperature -40 ~ 85° C (-40 ~ 185° F)
• Operating Humidity 95% @ 40 °C (Non-condensing)
• Non-Operating Humidity (Non-condensing) 95% RH @ 60 °C

Physical Characteristics

• Dimension (L x H) 304.8 x 244 mm (12" x 9.6")
