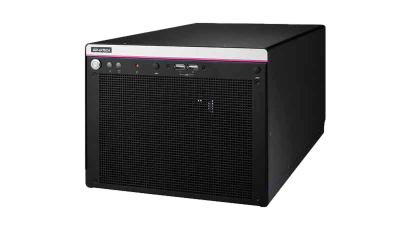

AIR-4100-S3A1U 搭載AMD Ryzen 8040 系列處理器邊緣AI系統

詳細規格

I/O

• COM Port 3 x RS-232 port(COM2/3/4), 1x RS-232/485 (COM1, by jumper)
• USB2.0 2
• USB 3.2 4

Memory

• Technology 2 x DDR4 260-pin SO-DIMM
• Socket 2 x 262 pin DDR5 SO-DIMM

Processor

• Max Speed 5.1 GHz
• CPU AMD Ryzen™ 5 8645HS
• L3 Cache 16MB~64MB
• BIOS AMI UEFI 256 Mbit
• Core Number 6
• CPU TDP 54W
• Base Frequency 4.3 GHz
• TDP 45W

Storage

• SATA 2 x 2.5" SATAIII Swappble SSD (Max Height 7mm)

Ethernet

• LAN1/2/3/4 10/100/1000/2500 Mbps Intel i226-LM GbE, support Wake On Lan

I/O Interface

• HDMI 1
• Audio 1 x Line-out
• DP1.2 1

Environment

• Temperature (Operating) 0 ~ 45° C (32 ~ 113° F)
• Temperature (Storage) - 40 ~ 85° C (-40 ~185° F)
• Relative Humidity 95% @ 40° C (non-condensing)
• EMC CE/FCC Class B, CCC, BSMI
• Safety Certifications CB, UL, CCC, BSMI

Power Requirement

• Power Type AT/ATX
• Power Input Votage 100-240V AC

Expansion

• Add-on Card Slot One PCIe x16 (signal PCIe x8), Max. card size (W x H x D): 60 x 130 x 305 mm#3
• M.2 1x 2280 M key
• M.2 E-Key 1 x E-Key 2230
• M.2 B-Key 1 x B-Key 2242/3042/3052 with Nano-SIM

Others

• Watchdog timer 255 levels timer interval, setup by software
• TPM TPM 2.0

Software Support

• Microsoft Windows Windows Win11 LTSC
• Linux Ubuntu 24.04
