2 Year Warranty

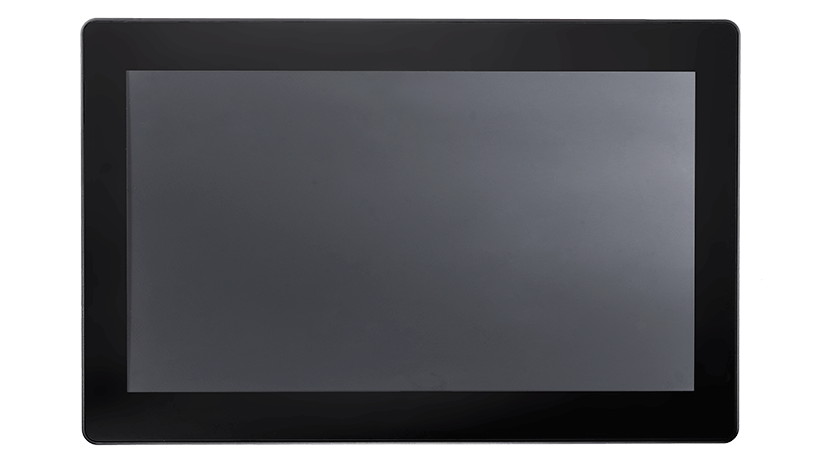

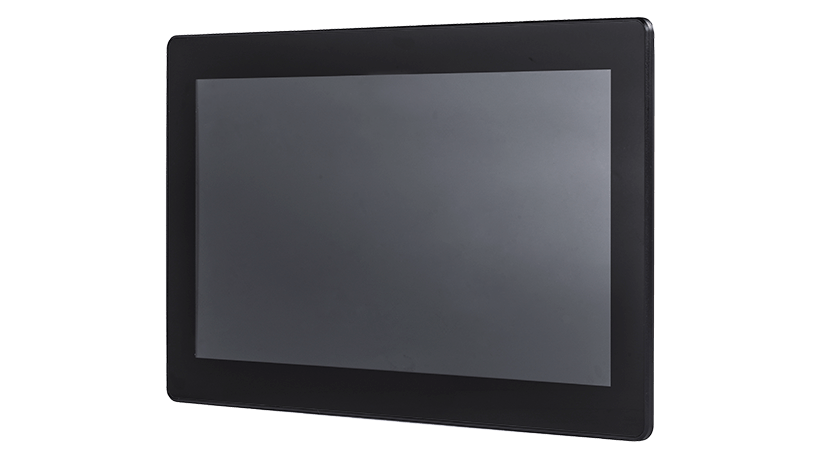

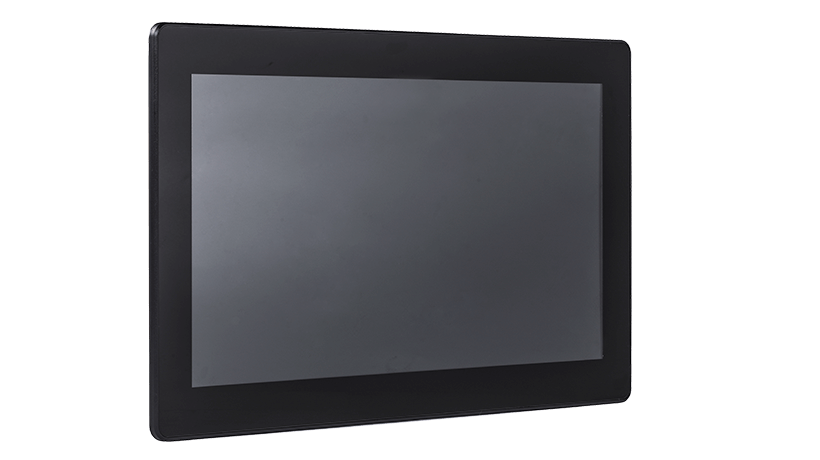

PPC-115W-PK92AB 15.6"FHD PPC w/RK3399,4GBDDR,32GBEMMC,Android11

  • true-flat寬顯示螢幕,搭配Pcap多點觸控。
  • 嵌入式Rockchip RK3399處理器,雙核心Cortex-A72高達1.8GHz。
  • 搭載4GB LPDDR4-1333記憶體,32GB eMMC NAND快閃記憶體。
  • IP65等級的前面板保護。
  • 支援VESA 100和面板安裝(可選配)。
  • 支援Android和Debian作業系統。
  • 預約(案場規劃)或(軟硬整合)諮詢服務
Certifications CE CE CE CE CE CE CE

已含稅
加入購物車 直接結帳

產品亮點

RISC-Based Android PPC-100 Series

Powerful All-in-One Panel PCs for Industrial Digitalization
Realize the Factory IT Ecosystem and Drive IIoT

Advantech PPC-100 series provides cost-effective widescreen computing options that are ready to deploy out of the box and can be easily integrated with existing HMI/MES systems.

Feature Highlights

Larger Display Size and Convenient Operation

  • 15.6” (HD/FHD) & 11.6” widescreen display with multi-touch P-CAP control
  • IP65-rated front panel with narrow bezel design
  • Front embedded camera (optional)

Powerful Performance and Flexible Scalability

  • Powered by a Rockchip RK3399 chipset with support for 4K decoding
  • Rich I/O (USB, OTG, RS-232, GPIO) with optional expansion

Pre-Configured Solution for Easy Deployment

  • All memory, storage, and driver components are pre-configured
  • Supports Android and Linux operating systems
  • Built-in WISE-PaaS/AppHub remote management service for Android devices
Application Diagram

Web-Browser Terminal

MES Workstation

Certifications

CE

FCC

UL

CB

CCC

BSMI

VCCI

Product Specifications

Dimensions

Unit: mm
PPC-112W
Front View
Back View
Side View
PPC-115W
Front View
Back View
Side View

Mounting

Panel
Wall
Desktop
VESA

詳細規格

Hardware

  • CPU Rockchip ARM® RK3399 Dual-core Cortex-A72 and Quad-core Cortex-A53
  • Memory 1 x LPDDR4 with 4 GB
  • LAN 1 x 10/100/1000 Mbps

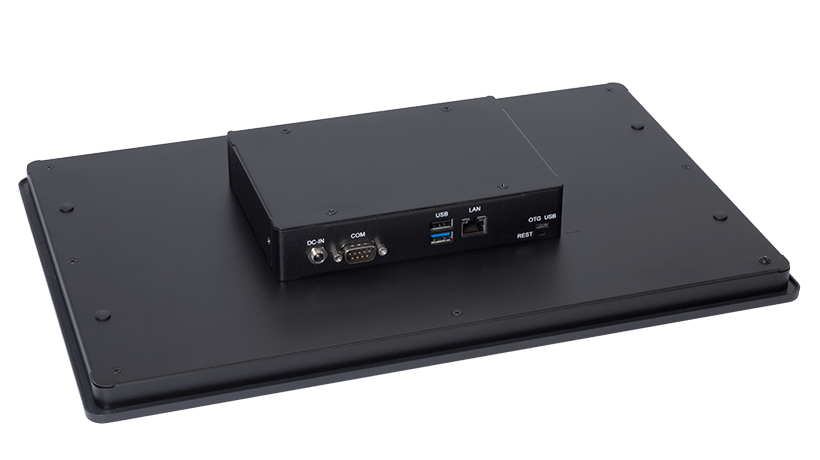

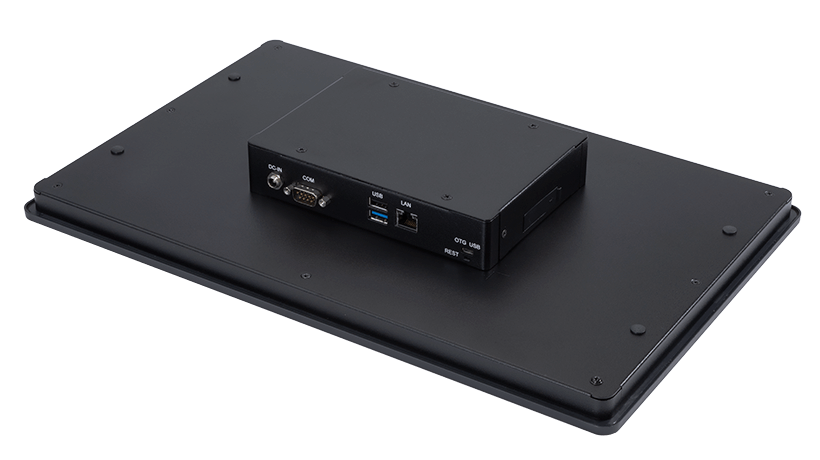

  • I/O 1 x USB 2.0, 1 x USB 3.0, 1 x Mirco USB OTG, 1 x RS-232, 5 x GPIO
  • Expansion 1 x M.2 E Key 2230
  • Certification CE, FCC Class B, CB, UL, CCC, UKCA, VCCI
  • Power Consumption 12 W @ 12 VDC
  • OS Support Android, Linux
  • Power Input 12 VDC

LCD Display

  • Viewing Angle (H/V°) 170/170
  • Luminance (cd/m2) 800
  • Max. Resolution 1920 x 1080
  • Display Size 15.6"
  • Backlight Life (hrs) 15,000

I/O Interface

  • Serial Ports 1 x RS-232
  • Power Connector 1 x DC Jack

Environment

  • Relative Humidity 95% RH (non-condensing)
  • Ingress Protection Front Panel IP65
  • Vibration Protection 0.5 Grms, random
  • Operating Temperature 0~50 °C (32~122 °F)
  • Storage Temperature -20~60 °C (-4~140 °F)

Touchscreen

  • Touch Type PCAP

Mechanical

  • Enclosure PC+ABS, SECC
  • Mounting Stand, Wall, VESA, Panel
  • Weight (Net) 2.6 kg (5.3 lb)
  • Dimension (W x H x D) 402 x 260 x 53 mm

USB Vision

  • Connector 1 x USB 2.0 Type A, 1 x USB 3.0 Type A
