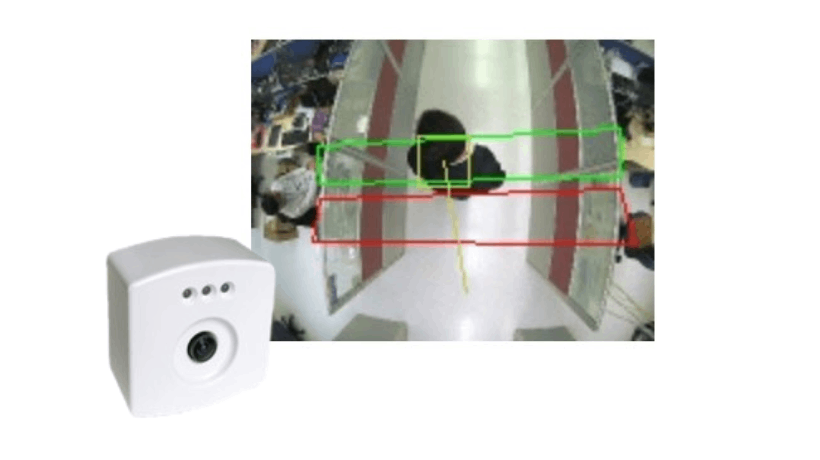

人流控制 2D 相機組 (相機+軟體) 人流控制2D相機+人流偵測軟體組合

    相機：UCAM-120A-U01
  • Intelligent all-in-one device for data capture, analysis and delivery
  • Easy installation and configuration via web browser
  • High counting accuracy rate up to 95%
  • Local storage data for counting report
  • Comprehensive API for data integration
    • 軟體：36CSSVUUCAM001
  • iVA.Counting is a software to precisely count people entering and leaving the pre-defined area
  • 預約(案場規劃)或(軟硬整合)諮詢服務

已含稅
UCAM-120A-U01+36CSSVUUCAM001
加入購物車

產品已加入購物車

> 前往結帳

產品組合

UCAM-120A-U01+36CSSVUUCAM001

主產品:人流控制 2D 相機組 (相機+軟體)

人流控制2D相機+人流偵測軟體組合

詳細規格 (UCAM-120A-U01)

Power Supply

  • Input Voltage 13.5W POE

I/O Interface

  • Ethernet 100M Ethernet

Best Fit

  • Best Fit 2D camera for people counting

Dimensions

  • Dimensions Device: 95 x 95 x 58 mm ; Package Box: 173 x 118 x 87 mm

LED

  • LED Indicators 3 dual-color LED

Weight (kg)

  • Weight (kg) 0.5kg

Environment

  • Operating Temperature 0°C – 50°C

Parameters

  • Mounting Height 2.5m – 5m
  • Title Angle 10° – +10°
  • Accuracy Traffic flow of 1,000 people per hour, ≥95%
  • Maximum Tracking Capability 200-1000 people simultaneously (need license to support)

詳細規格 (36CSSVUUCAM001)
