2 Year Warranty

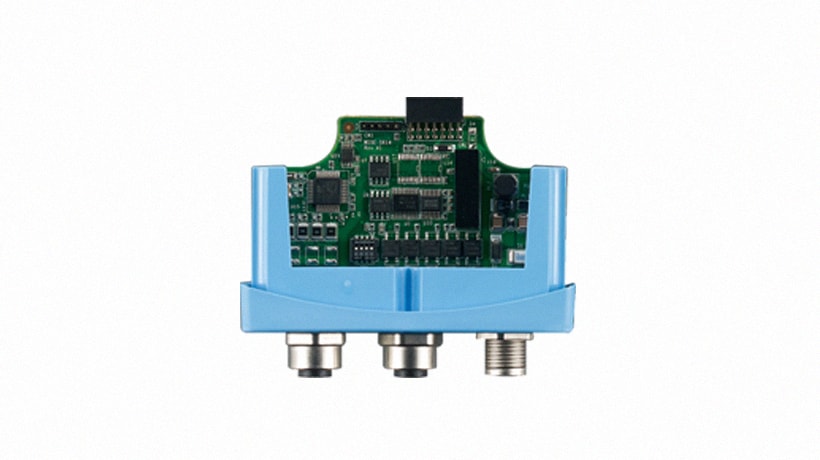

WISE-S614-A WISE-4600 4AI/4DI I/O 模組

  • 4-channel 類比輸入 和 4-channel 數位輸入
  • 支援資料縮放與平均化
  • 支援200Hz 計數器輸入 (32-bit + 1-bit 溢出)
  • 斷電時可 維持/清除 計數器數值
  • 支援反向DI狀態
  • 預約(案場規劃)或(軟硬整合)諮詢服務

已含稅
加入購物車 直接結帳

詳細規格

Analog Input

  • Input Range ±150mV, ±500mV, ±1V, ±5V, ±10V, 0~150mV, 0~500mV, 0~1V, 0~5V, 0~10V, 0~20mA, 4~20mA, ±20mA
  • Resolution* 16-bit
  • Accuracy* ±0.1% or better of FSR (Voltage) ±0.2% or better of FSR (Current)
  • Input Impedance* > 2M O (Voltage) 240 O (External resistor for current)
  • Over Voltage Protection* ±35 VDC
  • Burn-out Detection Yes (4~20 mA only)

Digital Input*

  • Channels 4
  • Logic level 0: Open; 1: Close to DCOM
  • Keep/Discard Counter Value when Power Off Support
  • Inverted DI Status Support
  • Input Type Dry Contact (Wet Contact by request)

Analog Input*

  • Channels 4

Isolated Digital Input

  • Input Type* Dry contact
