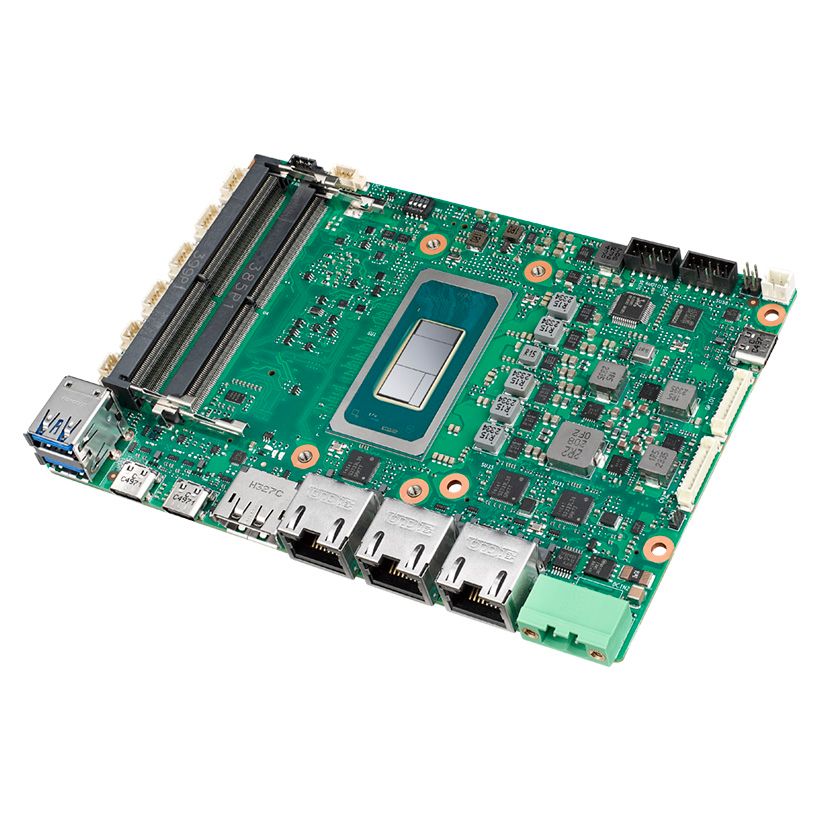

MIO-2364A-P2A1 MIO-2364 A101-3 ADL-N Atom x7211E, 6W

詳細規格

Display

• HDMI Up to 3840 x 2160 at 30Hz
• LCD LVDS: Dual channel 18/24-bit, up to 1920 x 1080

Memory

• Technology DDR5 4800 MHz
• Max. Capacity 16GB (up to 16GB per SO-DIMM)
• ECC Support No
• Channel/ Socket Single Channel / 1 Socket

Processor

• Chipset Integrated in SOC
• BIOS AMI UEFI 256 Mbit
• Core Number 2
• CPU TDP 6W
• Max Turbo Frequency 3.1 GHz

Environment

• Storage Temperature - 40 ~ 85° C (-40 ~185° F)
• Operating Temperature 0 ~ 60℃ (32 ~ 140℉) w/ 0.7m/s airflow

Power

• Power Supply Voltage 12 VDC, ± 10%
• Connector ATX 2pin
• Power Management AT, ATX

Ethernet

• Controller Intel® I226
• Speed 10/100/1000/2500 Mbps

Security

• TPM fTPM support by Intel® Platform Trust Technology

Graphics

• Max. Frequency 1 GHz

Environment

• Relative Humidity 40 °C @ 95%, Non-Condensing
• Vibration Resistance 3.5 Grms

Certification

• Electromagnetic CE, FCC

Expansion

• M.2 E-Key 1 x E-Key 2230
• M.2 B-Key 1 x B-Key 2242/3042/3052 with Nano-SIM

Mechanical

• Dimensions 100 x 72 mm
• Weight 75g

Internal I/O

• Serial 2 x RS-232/422/485
• SMBus 1
• GPIO 8-bit general purpose input/output
• USB2.0 2
• I2C 1 (Share with SMBus)
• Inverter 5V/12V, 2A
• SATA 1 x SATA GenIII 6.0 Gbps
• FAN 1 x 4-Wire Smart Fan, 12V@0.3A
• Front Panel Control Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer
• Audio Realtek ALC888s, Line-in/Line-out/MIC

Rear I/O

• Ethernet 1
• HDMI 1
• USB 3.2 2
