Name: MIC-711D-OX4A1
Brand: Advantech
SKU: MIC-711D-OX4A1
Price: 33590 NTD
Availability: InStock

MIC-711D-OX4A1 NVIDIA^® Jetson Orin™ NX 16G 開發板

已含稅

產品亮點

Orin NX 有Xavier
世代3~5倍的AI效能

更高的AI效能可以完成更高難度的AI任務，也能支援更多裝置與高傳輸的介面

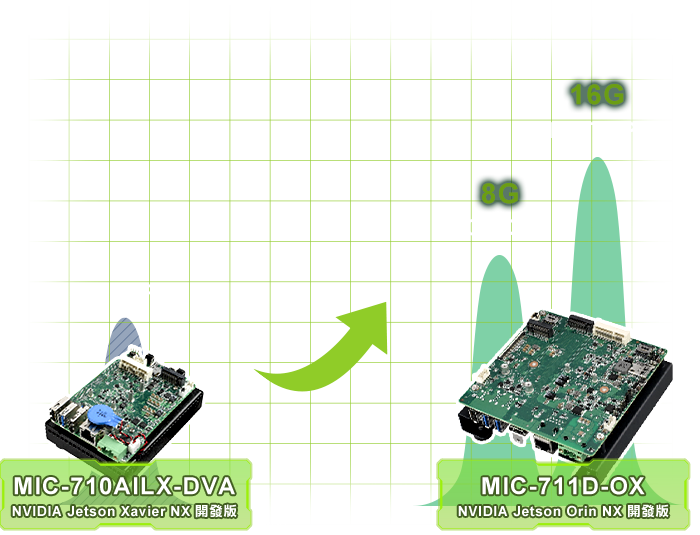

		MIC-710AILX-DVA NVIDIA Jetson Xavier NX 開發版	MIC-711D-OX NVIDIA Jetson Orin NX 開發版
容量		8G	8G	16G
處理器	CPU	6-core NVIDIA Carmel Arm® v8.2 64-bit CPU (6MB L2 + 4MB L3)	6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)	8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
	GPU	384-core NVIDIA Volta™ GPU with 48 Tensor Cores	1024-core NVIDIA Ampere GPU with 32 Tensor Cores
	Memory	8GB LPDDR4	8GB LPDDR5	16GB LPDDR5
	Flash	16G of eMMC	-

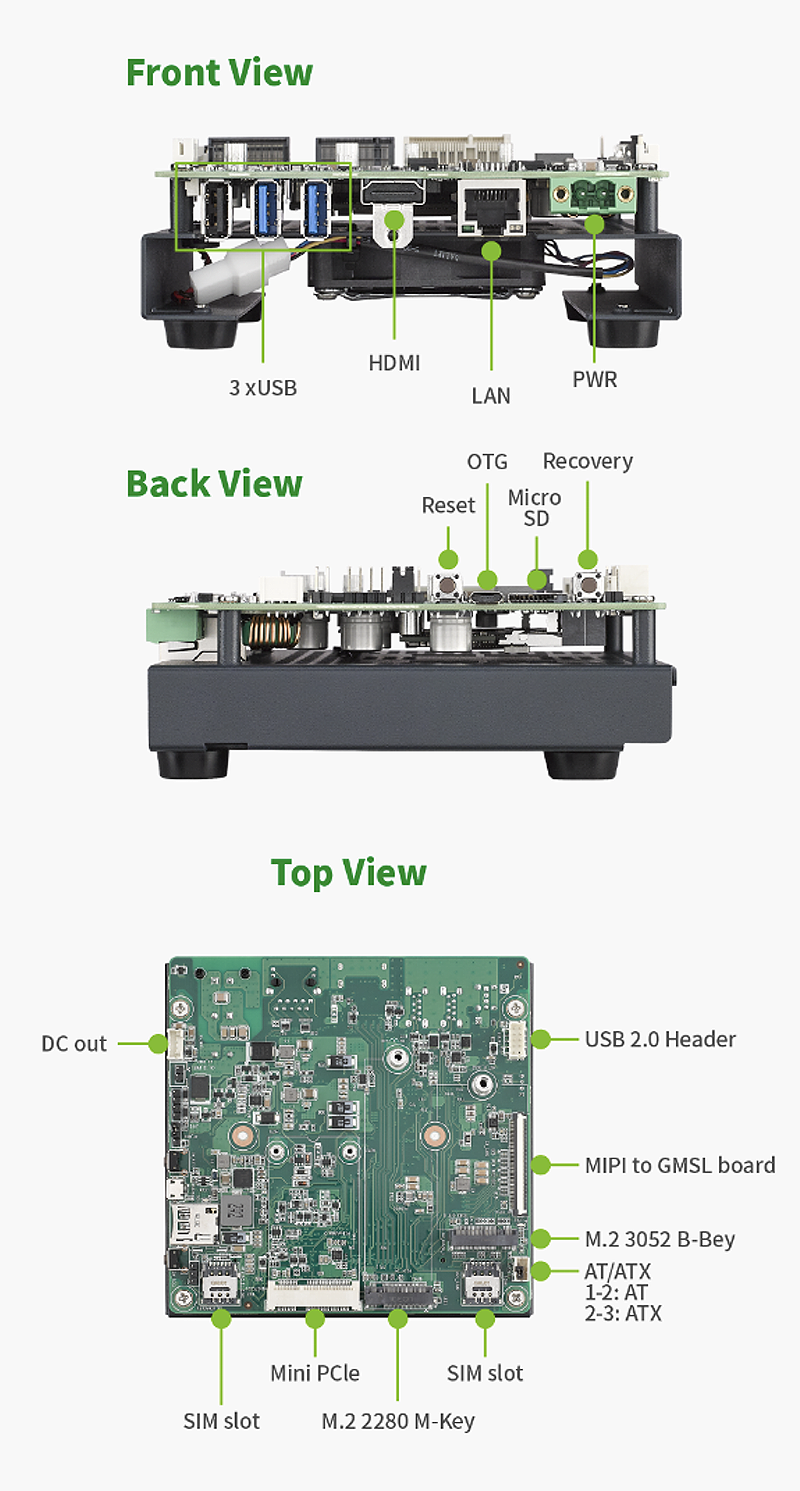

I/O	Ethernet	1 x 10/100/1000 Mbps	1 x 10/100/1000 Mbps
	Display	HDMI (Max. resolution 3840x2160 @ 60Hz)	HDMI (Max. resolution 3840x2160 @ 60Hz)
	USB	External: 1 x USB 2.0, 1 x USB 3.2 Gen 1 Internal: 1 x USB 2.0 (by pin header)	External: 2 x USB 3.2 Gen 1, 1 x USB 2.0 Internal: 1 x USB 2.0 (by pin header)
	Serial Port	RS-232 (by pin header)	-
	OTG USB	1 x Micro USB	1 x Micro USB
擴充	Mini PCIe	-	1 x mPCIe (Signal: PCIe + USB 2.0)
	M.2	-	1 x M.2 3052 (B-Key, Signal: USB)
	GMSL (Optional)	-	2-ch GMSL2.0 with FAKRA connectors
	SIM	1 x Nano SIM	2 x Nano SIM slots
	SD Card	1 x Micro SD	-
尺寸		116 x 85 x 54.7 mm	125 x 125 x 51 mm
應用推薦		建議在單純的AI應用上面，單一影像輸入分析，放在SDK、 API 等等	較高AI運算容許多路的影像輸入的應用，同時可以在更低延遲要求的應用上使用
