為什麼你需要用工業級平板電腦

Why do you need an industrial-grade tablet

Advantech HMI

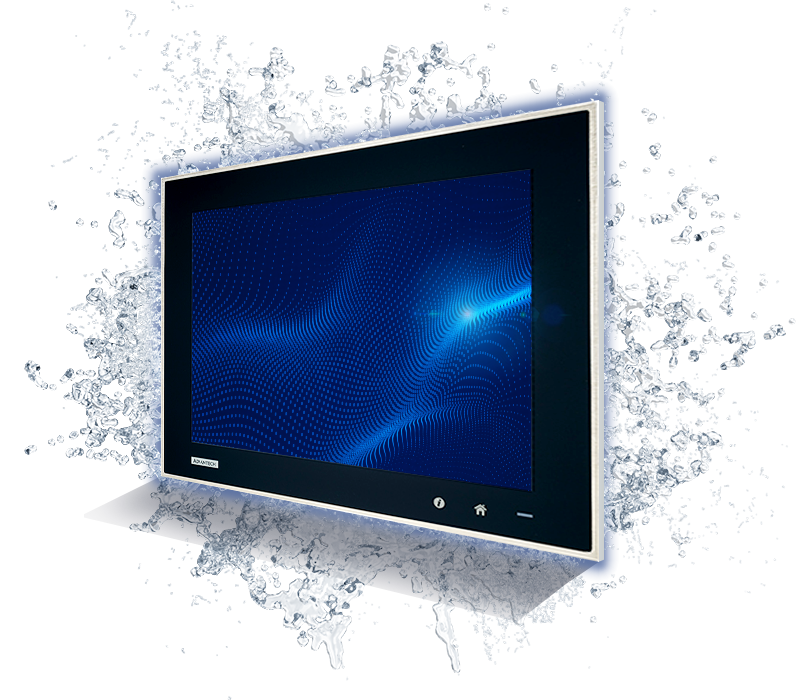

IP65防護

防塵防水，確保在惡劣工業環境中依然科運作

抗干擾能力

Intel® Core™ I 處理器可提供先進的圖形性能，以提高複雜應用程序的處理效率。

無風扇設計

此設計使產品具有更加的導熱性、使用壽命、低耗能，使之能達更好的節能效果

無矽設計

防止有機矽污染影響生產過程，因此可更廣泛的應用在不同環境(僅SPC系列)

易於擴展

支援各種外圍設備和控件，ex.RFID / NFC讀取器，鍵控選擇開關，LED指示燈，按鈕和緊急停止按鈕，可根據特定要求靈活配置系統功能。 (僅SPC系列)

易於安裝

支援VESA安裝，可確保在各種環境中輕鬆安裝。支援CP 40（Rittal）和CS-480（Bernstein）懸架系统(僅SPC系列)

下載全產品規格

強力主打

Major Products

Advantech HMI

PPC FPM SPC

輕巧高畫質首選

PPC-3151SW-MART

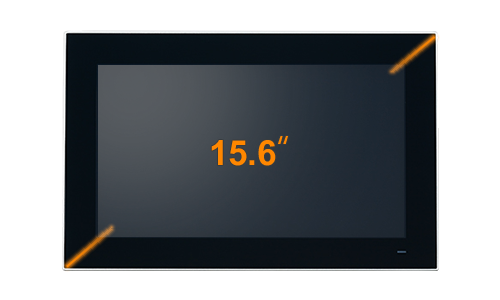

● 15.6吋投射式電容觸控
● 高效能無風扇第六代Intel® Core™ i 處理器
● 支援雙顯示器
● 支持全尺寸mini PCIe擴展

優惠價:39,930

立即購買

輕巧高畫質首選

FPM

● 15.6吋投射式電容觸控
● 高效能無風扇第六代Intel® Core™ i 處理器
● 支援雙顯示器
● 支持全尺寸mini PCIe擴展

優惠價:39,930

立即購買

輕巧高畫質首選

SPC

● 15.6吋投射式電容觸控
● 高效能無風扇第六代Intel® Core™ i 處理器
● 支援雙顯示器
● 支持全尺寸mini PCIe擴展

優惠價:39,930

立即購買

依您的需求挑選

尺寸：

解析度：

防護等級：

背光壽命：

FPM系列工業級觸碰螢幕

輕薄首選

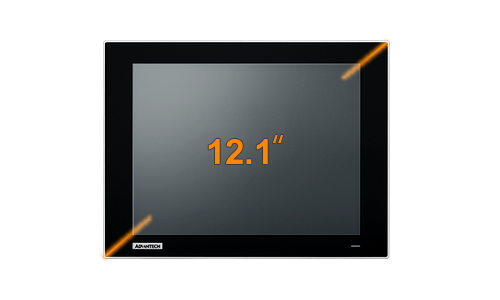

FPM-212-R8AE

● 12.1吋五線電阻式觸控

● 防眩光鋼化玻璃螢幕

● 可鎖定的I / O連接器

價格 $ 19990

立即購買

高CP值首選

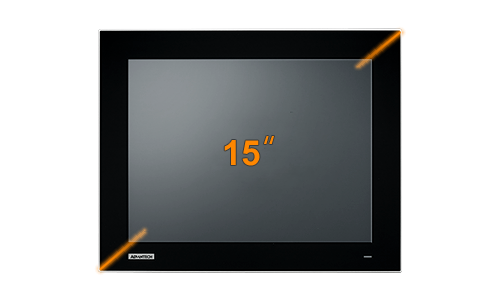

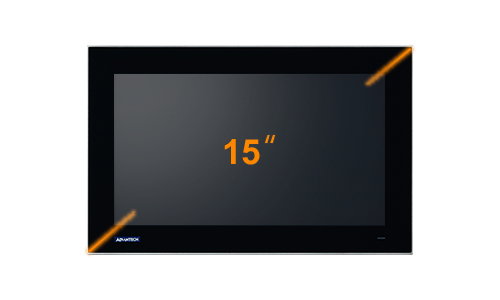

FPM-215-R8AE

● 15吋五線電阻式觸控

● 防眩光鋼化玻璃螢幕

● 背光壽命高達70,000 hr

價格 $ 19990

立即購買

高CP值首選

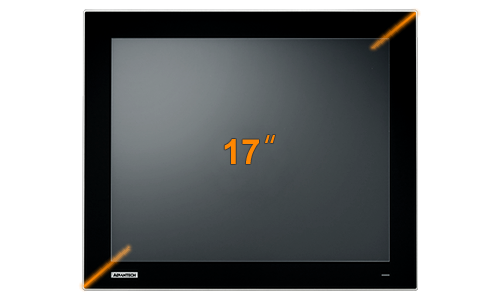

FPM-217-R8AE

● 17吋五線電阻式觸控

● 防眩光鋼化玻璃螢幕

● 可鎖定的I / O連接器

價格 $ 19990

立即購買

高CP值首選

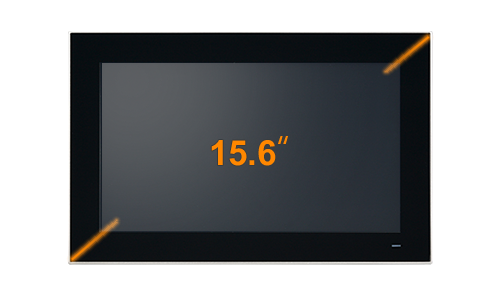

FPM-215W-P4AE

● 15.6吋投射式電容觸控

● 16：9寬屏長寬比，將觀看面積增加40％

● 可鎖定的I / O連接器

價格 $ 19990

立即購買

廣角首選

FPM-221W-P4AE

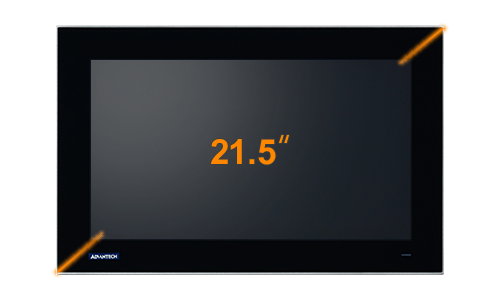

● 21.5吋投射式電容觸控

● 16：9寬屏長寬比，將觀看面積增加40％

● 可鎖定的I / O連接器

價格 $ 19990

立即購買

易腐蝕環境首選

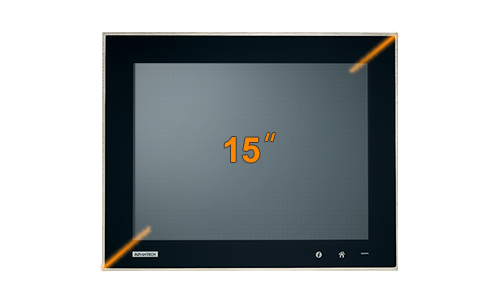

FPM-815S-R6AE

● 15吋五線電阻式觸控

● 304不銹鋼前擋板和防銹塗層的SPCC後蓋

● 背光壽命高達70,000 hr

價格 $ 19990

立即購買

寬溫首選

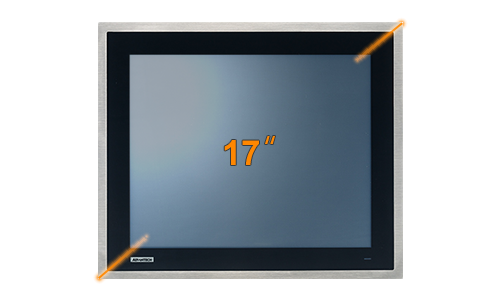

FPM-817S-R6AE

● 17吋五線電阻式觸控

● 寬廣的工作溫度: -20 ~ 60 °C (-4 ~ 140 °F)

● 背光壽命50,000 hr

價格 $ 19990

立即購買

規格比較

Model	FPM-221W-P4AE	FPM-215W-P4AE	FPM-817S-R6AE	FPM-815S-R6AE	FPM-212-R8AE	FPM-215-R8AE	FPM-217-R8AE
CPU
Memory
Display Type	Full HD TFT LED LCD	WXGA TFT LED LCD	SXGA TFT LCD	XGA TFT LCD	XGA TFT LCD	XGA TFT LCD	SXGA TFT LCD
Display Size	21.5"	15.6"	17"	15"	12.1"	15"	17"
Max. Resolution	1920 x 1080	1366 x 768	1280 x 1024	1024 x 768	1024 x 768	1024 x 768	1280 x 1024
Max. Colors	16.7M	16.7M	16.7M	16.7M	16.2 M	16.2 M	16.7M
Luminance cd/m2	250	300	350	500	600	300	250
VieWINg Angle(H/V。)	178/178	160/160	160/140	176/176	178/178	176/176	170/170
Backlight MTBF	50,000 hr	50,000 hr	50,000 hr	70,000 hr	50,000 hr	70,000 hr	50,000 hr
Touchscreen	Projected capacitive touch	Projected capacitive touch	5-wire resistive with enhanced ITO film	5-wire resistive with enhanced ITO film	5-wire analog resistive	5-wire analog resistive	5-wire analog resistive
Network(LAN)
I/O Ports
HDD(Optional)
Expansion Slots
Digital
Input / Output
Ingress Protection	Front Panel IP66	Front Panel IP66	Front Panel IP66	Front Panel IP66	Front Panel IP66	Front Panel IP66	Front Panel IP66
DC Power Input(Voltage)	12 V	12 V	24 V	24 V	12 V	12 V	12 V
Enclosure	Front panel: Die-casting aluminium, Rear cover: Die-casting aluminium	Front panel: Die-casting aluminium, Rear cover: Die-casting aluminium	Front panel: 304 stainless steel bezel Rear cover: SPCC with anti-rust coating	Front panel: 304 stainless steel bezel Rear cover: SPCC with anti-rust coating	Front panel: Die cast magnesium alloy Rear cover: Die-casting aluminum	Front panel: Die cast magnesium alloy Rear cover: Die-casting aluminum	Front panel: Die cast magnesium alloy Rear cover: Die-casting aluminum
Mounting	Panel, VESA arm	Panel, VESA arm	Panel, wall, desktop, VESA arm (optional)	Panel, wall, desktop, VESA arm (optional)	Stand, Wall, Panel and VESA arm (75 x 75mm) (optional)	Stand, Wall, Panel and VESA arm (75 x 75mm) (optional)	Stand, Wall, Panel and VESA arm (75 x 75mm) (optional)
Weight	8 kg	4 kg	6.2 kg	5.4 kg	3.2 kg	4.6 kg	5.4 kg
Operating Temperature	0 ~ 50°C (32 ~ 122°F)	0 ~ 50°C (32 ~ 122°F)	-20 ~ 60 °C (-4 ~ 140 °F)	-20 ~ 60 °C (-4 ~ 140 °F)	0 ~ 50 °C (32 ~ 122 °F)	0 ~ 50 °C (32 ~ 122 °F)	0 ~ 50 °C (32 ~ 122 °F)
Dimensions	558.4 x 349.8 x 56.2 mm Cut-out Dimensions: 550.30 x 341.8 mm	419.7 x 269 x 56.2 mm Cut-out Dimensions: 412.40 x 261.70 mm	432.5 x 365.5 x 59.3 mm Cut-out-Dimensions: 382 x 320 mm	405.3 x 329.4 x 59.3 mm Cut-out Dimensions: 350 x 277 mm	311.8 x 238.0 x 53 mm	383.2 x 307.3 x 53.20 mm	410.4 x 343.4 x 54 mm
Certification	BSMI, CCC, CE, FCC Class A, UL	BSMI, CCC, CE, FCC Class A, UL	BSMI, CCC, CE, FCC Class A, UL	BSMI, CCC, CE, FCC Class A, UL	BSMI, CCC, CE, FCC Class A, UL	BSMI, CCC, CE, FCC Class A, UL	BSMI, CCC, CE, FCC Class A, UL
Operating System	Windows XP/Vista/7/8/10/ XPE, Linux	Windows XP/Vista/7/8/10/ XPE, Linux	Windows XP/Vista/7/8/10/ XPE, Linux	Windows XP/Vista/7/8/10/ XPE, Linux	Windows XP/Vista/7/8/10/ XPE, Linux	Windows XP/Vista/7/8/10/ XPE, Linux	Windows XP/Vista/7/8/10/ XPE, Linux

PPC系列工業級觸控平板電腦

輕薄首選

PPC-3150SW-MART

● 15.6吋投射式電容觸控
● RS-485 的自動數據流控制
● 支援雙顯示器

價格 $ 19990

立即購買

輕巧高畫質首選

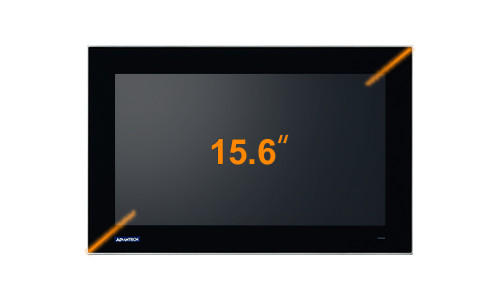

PPC-3151SW-MART

● 15.6吋投射式電容觸控
● 第六代Intel® Core™ i 處理器
● 支援雙顯示器

價格 $ 19990

立即購買

輕巧高畫質首選

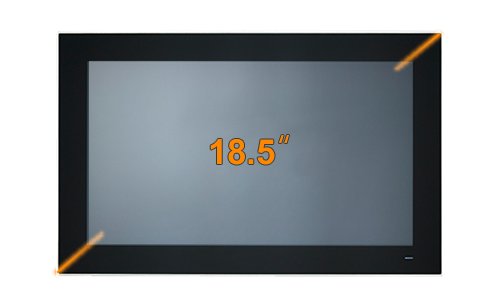

PPC-3180SW-MART

● 18.5吋投射式電容觸控
● RS-485 的自動數據流控制
● 支援雙顯示器

價格 $ 19990

立即購買

擴充首選

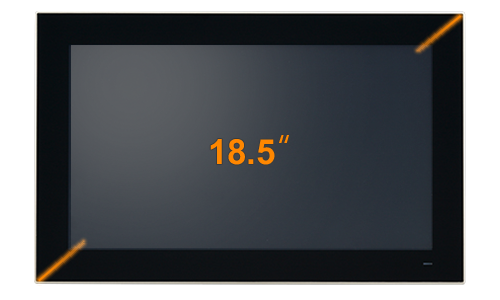

PPC-3181SW-MART

● 18.5吋投射式電容觸控
● 第六代Intel® Core™ i 處理器
● 支援雙顯示器

價格 $ 19990

立即購買

高畫質廣角首選

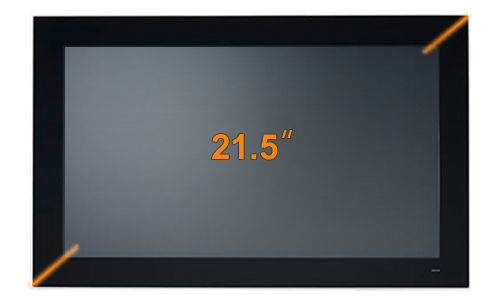

PPC-3211SW-MART

● 21.5吋投射式電容觸控
● 第六代Intel® Core™ i 處理器
● 支援雙顯示器

價格 $ 19990

立即購買

規格比較

Model	WPPC-3150SW-MART	PPC-3151SW-MART	PPC-3180SW-MART	PPC-3181SW-MART	PPC-3211SW-MART
CPU	Intel® Pentium® N4200 quad core	6th Gen Intel® Core™ i3/i5 processor (Dual Core)	Intel Pentium® N4200 quad Core	6th Gen Intel® Core™ i3/i5 processor (Dual Core)	6th Gen Intel® Core™ i3/i5 processor (Dual Core)
Memory	1 x SODIMM, DDR3L 1600/1866, max. 8 GB	1 x SO-DIMM DDR4 1866/2133 MHz (max. 16 GB)	1 x SODIMM, DDR3L 1600/1866, max. 8 GB	1 x SO-DIMM DDR4 1866/2133 MHz (max. 16 GB)	1 x SO-DIMM DDR4 1866/2133 MHz (max. 16 GB)
Display Type	TFT LCD (LED backlight)	Full HD TFT LCD (LED backlight)	TFT LCD (LED backlight)	TFT LCD (LED backlight)	TFT LCD (LED backlight)
Display Size	15.6"	15.6"	18.5"	18.5"	21.5"
Max. Resolution	1366 x 768	1920 x 1080	1366 x 768	1366 x 768	1920 x 1080
Max. Colors
Luminance cd/m2	400	450	450	450	300
VieWINg Angle(H/V。)	170/160	170/170	170/160	170/160	178/178
Backlight MTBF	50,000 hr	50,000 hr	50,000 hr	50,000 hr	50,000 hr
Touchscreen	Multi-touch projected capacitive	Multi-touch projected capacitive	Multi-touch projected capacitive	Multi-touch projected capacitive	Multi-touch projected capacitive
Network(LAN)	2 x GbE (Intel I211-AT,Intel I219LM)	2 x GbE (Intel I211-AT,Intel I219LM)	2 x GbE (Intel I211-AT,Intel I219LM)	2 x GbE (Intel I211-AT,Intel I219LM)	2 x GbE (Intel I211-AT,Intel I219LM)
I/O Ports	2 x serial ports: 1 x RS-232, 1 x RS-232/422/485 (adjustable via BIOS) 2 x USB 2.0, 2 x USB 3.0 1 x line out	2 x serial ports: 1 x RS-232, 1 x RS-232/422/485 (adjustable via BIOS) 2 x USB 3.0, 2 x USB 2.0 (right side) 1 x HDMI 1 x TPM2.0 (optional, internal)	2 x serial ports: 1 x RS-232, 1 x RS-232/422/485 (adjustable via BIOS) 2 x USB 2.0, 2 x USB 3.0 1 x line out	2 x serial ports: 1 x RS-232, 1 x RS-232/422/485 (adjustable via BIOS) 2 x USB 3.0, 2 x USB 2.0 (right side) 1 x HDMI 1 x TPM2.0 (optional, internal)	2 x serial ports: 1 x RS-232, 1 x RS-232/422/485 (adjustable via BIOS) 2 x USB 3.0, 2 x USB 2.0 (right side) 1 x HDMI 1 x TPM2.0 (optional, internal)
Storage	1 x 2.5" SATA bay 1 x mSATA bay	1 x 2.5" SATA bay 1 x mSATA bay	1 x 2.5" SATA bay 1 x mSATA bay	1 x 2.5" SATA bay 1 x mSATA bay	1 x 2.5" SATA bay 1 x mSATA bay
Expansion Slots	1 x full-size mini PCIe	1 x full-size mini PCIe	1 x full-size mini PCIe	1 x full-size mini PCIe	1 x full-size mini PCIe
Digital
Input / Output
Ingress Protection	Front panel: IP65	Front panel: IP65	Front panel: IP65	Front panel: IP65	Front panel: IP65
DC Power Input(Voltage)	12 ~ 24 VDC	12 ~ 24 VDC	12 ~ 24 VDC	12 ~ 24 VDC	12 ~ 24 VDC
Enclosure	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
Mounting	Panel, VESA 75, wall, stand, ARM	Panel, VESA 100, wall, stand, ARM	Panel, VESA 75, wall, stand, ARM	Panel, VESA 100, wall, stand, ARM	Panel, VESA 100, wall, stand, ARM
Weight	4.7 kg	4.8 kg	5.4 kg	5.7 kg	6.8 kg
Operating Temperature	0 ~ 50°C (32 ~ 122°F) with SSD 0 ~ 40°C (32 ~ 104°F) with HDD	0 ~ 50°C (32 ~ 122°F) with SSD 0 ~ 45°C (32 ~ 113°F) with HDD	0 ~ 50 °C (32 ~ 122 °F) with SSD 0 ~ 40 °C (32 ~ 104 °F) with HDD	0 ~ 50 °C (32 ~ 122 °F) for SSD 0 ~ 45 °C (32 ~ 113 °F) for HDD	0 ~ 50 °C (32 ~ 122 °F) for SSD 0 ~ 45 °C (32 ~ 113 °F) for HDD
Dimensions	419.7 x 269 x 58.6 mm (16.52" x 10.59" x 2.3")	419.7 x 269.0 x 62.1 mm (16.5 x 10.6 x 2.4 in)	488 x 309 x 58.45 mm (19.21 x 12.16 x 2.3 in)	488 x 309 x 61.7 mm (19.2 x 12.1 x 2.4 in)	558.4 x 349.8 x 62.2 mm (21.9 x 13.7 x 2.4 in)
Certification	BSMI, CCC, CB, UL, CE, FCC Class B	BSMI, CCC, CB, UL, CE, FCC Class B	BSMI, CCC, CB, UL, CE, FCC Class B	BSMI, CCC, CB, UL, CE, FCC Class B	BSMI, CCC, CB, UL, CE, FCC Class B
Operating System	Windows 10(64-bit), Windows 10 IOT LTSC, Linux, Android 8.1	Windows 7(32/64-bit)/10(64-bit), WES7P, Windows 10 IOT LTSC, Linux	Windows 10(64-bit), Windows 10 IOT LTSC, Linux, Android 8.1	Windows 7(32/64-bit)/10(64-bit), WES7P, Windows 10 IOT LTSC, Linux	Windows 7(32/64-bit)/10(64-bit), WES7P, Windows 10 IOT LTSC, Linux

SPC系列工業級整機防水平板電腦

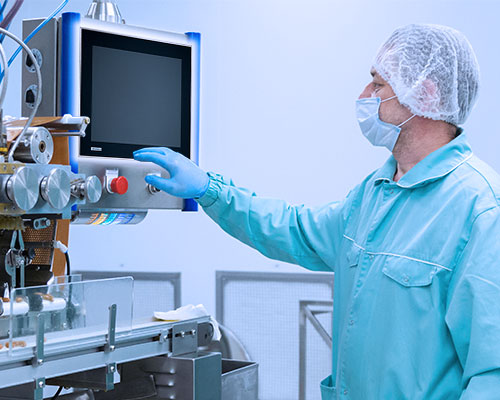

油膩環境首選

WP-515

● 15吋投射式電容觸控
● 整機不鏽鋼304食品級外殼,可每日的高溫水柱與清潔劑的清洗
● iKey設計可中斷touch，避免清洗時水珠造成的誤觸。

價格 $ 19990

立即購買

惡劣環境首選

SPC-815-M7AP

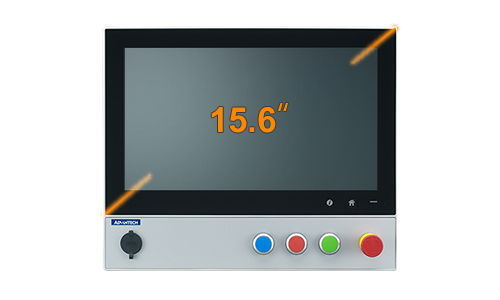

● 15.6吋投射式電容觸控
● 前方USB設計，在安裝後提供用戶一個簡易維護的操作方式
● 前方觸控強化玻璃，適合放在環境較惡劣的場域

價格 $ 19990

立即購買

多粉塵環境首選

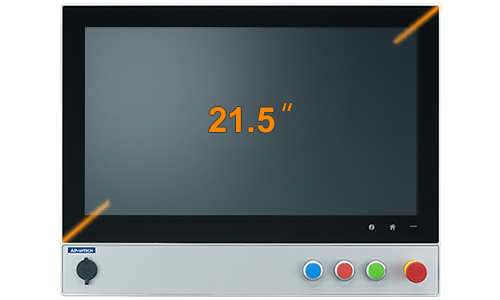

SPC-821-M7AP

● 21.5吋投射式電容觸控
● 整機IP65等級，確保不被空氣中的粉塵或是水氣侵蝕導致當機。
● 常見按鈕配置設計 (緊急停止+ON + OFF + PAUSE)，方便連接到各式的底層設備

價格 $ 19990

立即購買

規格比較

Model	WP-515	SPC-821-M7AP	SPC-815-M7AP
CPU	Intel® 6th. Core™ i3 Processor	Intel® 6th. Core™ i7/i5 /i3 Processor	Intel® 6th. Core™ i7/ i5 /i3 Processor
Memory	8 GB DDR3L SDRAM	8 GB DDR3L SDRAM	8 GB DDR3L SDRAM
Display Type	XGA TFT LED LCD	Full HD TFT LED LCD	HD TFT LED (FHD optional)
Display Size	15"	21.5"	15.6"
Max. Resolution	1024 x 768	1920 x 1080	1280 x 720
Max. Colors	16.7M	16.7M	16.7M
Luminance cd/m2	300 nits	300 nits	400 nits
VieWINg Angle(H/V。)	176 / 176	178/178	170/160
Backlight MTBF	70,000 hr	50,000 hr	50,000 hr
Touchscreen	Projected capacitive touch	Projected capacitive touch	Projected capacitive touch
Network(LAN)	10/100/1000BASE-T x 2	10/100/1000BASE-T x 2	10/100/1000BASE-T x 2
I/O Ports	RS-232 x1 (connection:M12 A-coded, 8-pin male) USB 2.0 x2 (connection:M12 A-coded, 8-pin female) 24 VDC power input (connection:M12 A-coded, 5-pin male)	USB 3.0 x 2 USB 2.0 x1 (Front)	USB 3.0 x 2 USB 2.0 x1 (Front)
HDD(Optional)	2.5" SATA HDD / Default 64G SSD	2.5" SATA HDD	2.5" SATA HDD
Expansion Slots	Full-size mini PCIe x1	Full-size mini PCIe x1	Full-size mini PCIe x1
Digital
Input / Output
Ingress Protection	All-Around IP69k	All-Around IP66	All-Around IP66
DC Power Input(Voltage)	24 VDC ± 20%	24 VDC ± 20%	24 VDC ± 20%
Enclosure	Front bezel: 304L Stainless Steel Back housing: 304L Stainless Stee	Front bezel: Die cast aluminum alloy Back housing: Die cast aluminum alloy	Front bezel: Die cast aluminum alloy Back housing: Die cast aluminum alloy
Mounting	VESA	Pole Mount / VESA (optional)	Pole Mount / VESA (optional)
Weight	8.5 kg	11.6 kg	8.8 kg
Operating Temperature	0 ~ 50°C (32 ~ 122°F)	0 ~ 55°C (32 ~ 131°F)	0 ~ 55°C (32 ~ 131°F)
Dimensions	389x 313 x 56 mm	546.69 x 420.34 x 67 mm (w/o Flange for arm mount) 546.69 x 420.34 x 160 mm (w/ Flange for arm mount) 402.19 x 333.19 x 160 mm (w/ Flange for arm mount)	402.19 x 333.19 x 67 mm (w/o Flange for arm mount) 402.19 x 333.19 x 160 mm (w/ Flange for arm mount)
Certification	BSMI, CCC, CE, FCC Class A, UL	BSMI, CCC, CE, FCC Class A, UL	BSMI, CCC, CE, FCC Class A, UL
Operating System	Windows 10 Enterprise LTSB, Linux	Windows 10 Enterprise LTSB	Windows 10 Enterprise LTSB
